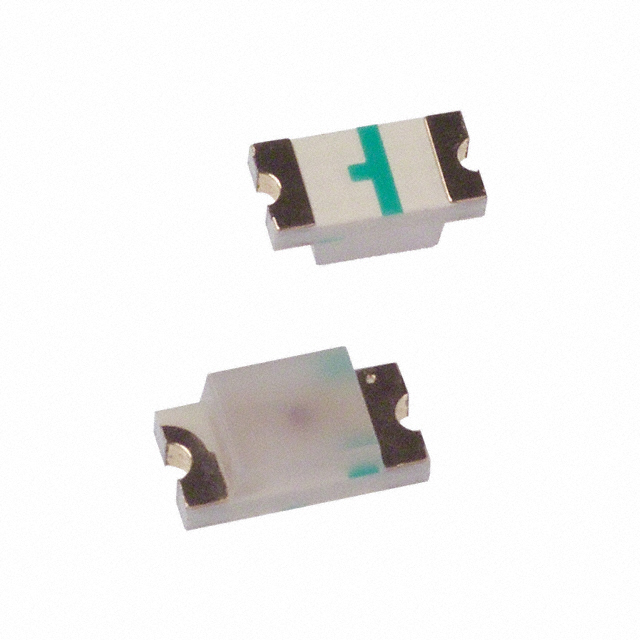

HSMH-C150
LED RED DIFFUSED CHIP SMDManufacturer: Broadcom Limited
Categories: LED Indication - Discrete
Quality Control: Learn More
Broadcom Limited HSMH-C150 is a red diffused surface-mount LED designed for general indication. Featuring a 1206 (3216 Metric) package, this component emits light with a dominant wavelength of 639nm and a peak wavelength of 660nm. The forward voltage is typically 1.8V at a test current of 20mA, producing a millicandela rating of 17mcd. The diffused lens provides a wide viewing angle of 170 degrees. This LED is suitable for applications in industrial automation, consumer electronics, and medical devices where reliable visual feedback is required. It is supplied in a Tape & Reel (TR) package.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 1206 (3216 Metric) |
| Color | Red |
| Size / Dimension | 3.20mm L x 1.60mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 17mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.8V |
| Lens Color | White |
| Current - Test | 20mA |
| Viewing Angle | 170° |
| Height (Max) | 1.10mm |
| Wavelength - Peak | 660nm |
| Wavelength - Dominant | 639nm |
| Supplier Device Package | Chip LED |
| Lens Transparency | Diffused |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 2.00mm x 1.60mm |
