HSMH-C110
LED RED DIFFUSED CHIP SMD R/AManufacturer: Broadcom Limited
Categories: LED Indication - Discrete
Quality Control: Learn More

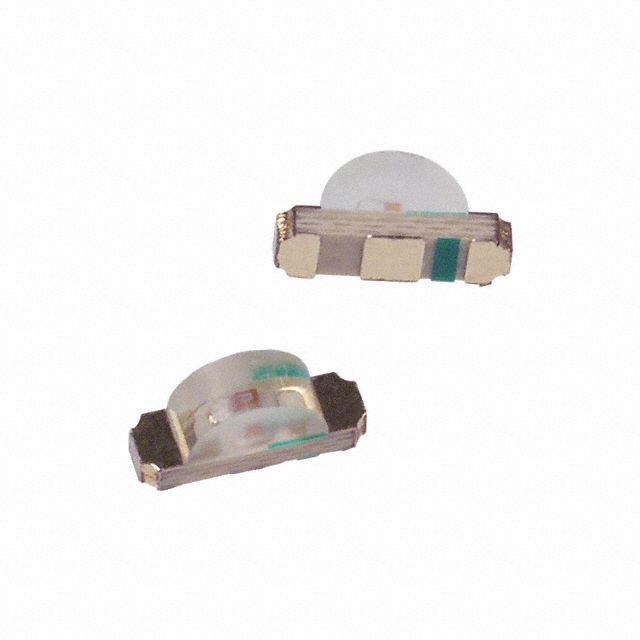

Broadcom Limited HSMH-C110 is a red diffused surface-mount LED designed for discrete indication. This 2-SMD, No Lead component operates with a typical forward voltage of 1.8V and a test current of 20mA, producing a dominant wavelength of 639nm and a peak wavelength of 660nm. It features a diffused lens with a domed top, measuring 2.60mm x 1.00mm, and offers a wide viewing angle of 130°. The LED has a millicandela rating of 17mcd and is housed in a compact 3.20mm L x 1.50mm W package with a maximum height of 1.00mm. Mounting is surface mount, right angle. This component is commonly utilized in consumer electronics, industrial automation, and automotive applications for status signaling. It is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, No Lead |
| Color | Red |
| Size / Dimension | 3.20mm L x 1.50mm W |
| Mounting Type | Surface Mount, Right Angle |
| Millicandela Rating | 17mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.8V |
| Lens Color | White |
| Current - Test | 20mA |
| Viewing Angle | 130° |
| Height (Max) | 1.00mm |
| Wavelength - Peak | 660nm |
| Wavelength - Dominant | 639nm |
| Supplier Device Package | Chip LED |
| Lens Transparency | Diffused |
| Lens Style | Rectangle with Domed Top |
| Lens Size | 2.60mm x 1.00mm |
