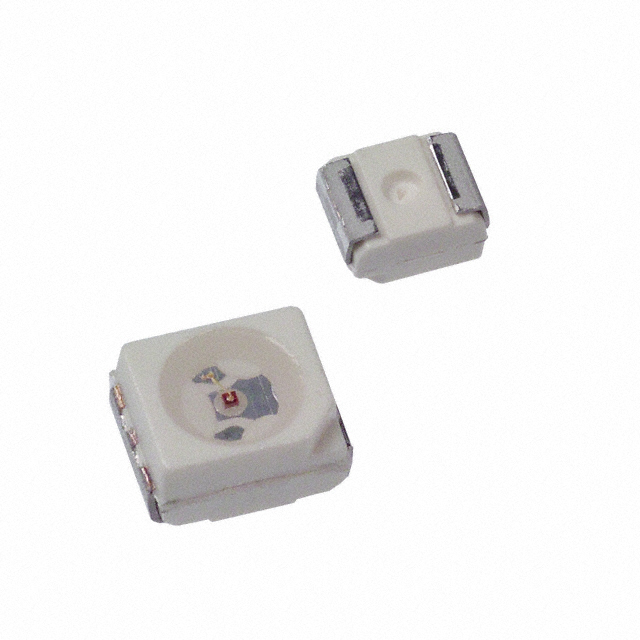

HSMG-A100-L02J1
LED YLW-GRN CLEAR 2PLCC SMDManufacturer: Broadcom Limited
Categories: LED Indication - Discrete
Quality Control: Learn More
Yellow-Green 560nm LED Indication - Discrete 2.2V 2-PLCC
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 32 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-PLCC |
| Color | Yellow-Green |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | - |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 120° |
| Height (Max) | 2.10mm |
| Wavelength - Peak | 558nm |
| Wavelength - Dominant | 560nm |
| Supplier Device Package | 2-PLCC |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | 2.20mm Dia |
