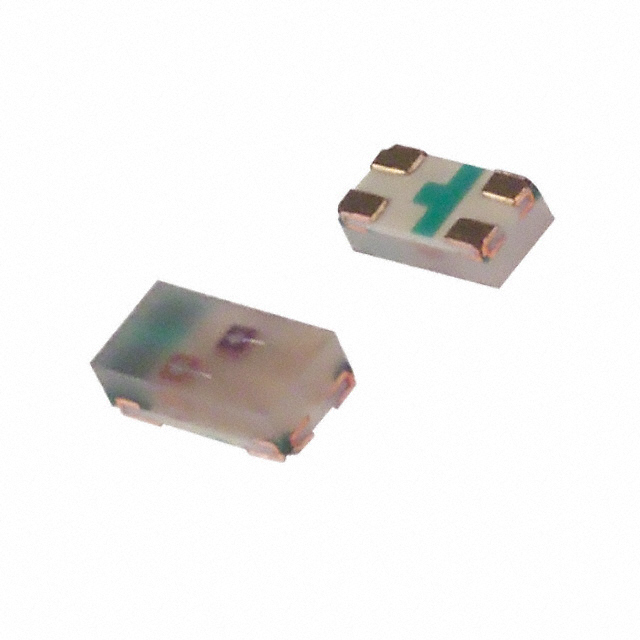

HSMF-C162
LED AMBER/RED DIFFUSED 0603 SMDManufacturer: Broadcom Limited
Categories: LED Indication - Discrete
Quality Control: Learn More
Amber, Red 592nm Amber, 626nm Red LED Indication - Discrete 1.9V Amber, 1.9V Red 0603 (1608 Metric)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 17 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0603 (1608 Metric) |
| Color | Amber, Red |
| Size / Dimension | 1.60mm L x 0.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 90mcd Amber, 90mcd Red |
| Configuration | Independent |
| Voltage - Forward (Vf) (Typ) | 1.9V Amber, 1.9V Red |
| Lens Color | White |
| Current - Test | 20mA Amber, 20mA Red |
| Viewing Angle | 120° |
| Height (Max) | 0.50mm |
| Wavelength - Peak | 595nm Amber, 637nm Red |
| Wavelength - Dominant | 592nm Amber, 626nm Red |
| Supplier Device Package | 0603 |
| Lens Transparency | Diffused |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.60mm x 0.80mm |
