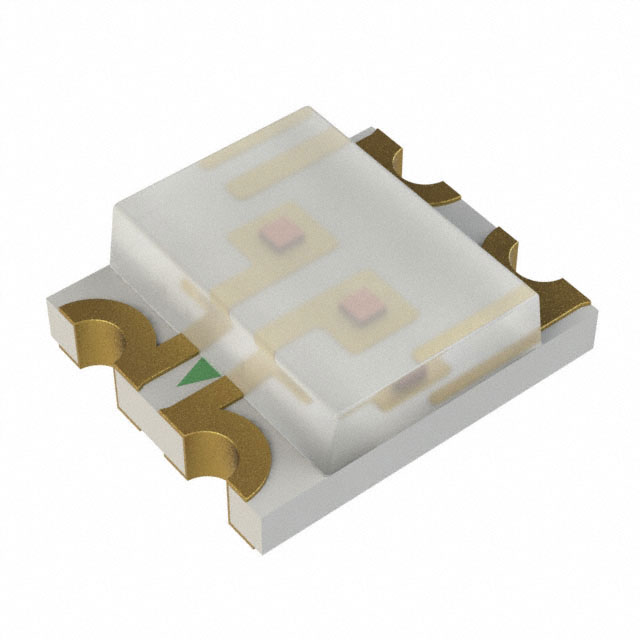

HSMF-C15A
LED AMBER/RED DIFFUSED SMDManufacturer: Broadcom Limited
Categories: LED Indication - Discrete
Quality Control: Learn More
Amber, Red 592nm Amber, 632nm Red LED Indication - Discrete 1.9V Amber, 2V Red 4-SMD, No Lead
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 21 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, No Lead |
| Color | Amber, Red |
| Size / Dimension | 3.20mm L x 2.70mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 55mcd Amber, 79mcd Red |
| Configuration | Independent |
| Voltage - Forward (Vf) (Typ) | 1.9V Amber, 2V Red |
| Lens Color | White |
| Current - Test | 20mA Amber, 20mA Red |
| Viewing Angle | 170° |
| Height (Max) | 1.20mm |
| Wavelength - Peak | 595nm Amber, 644nm Red |
| Wavelength - Dominant | 592nm Amber, 632nm Red |
| Supplier Device Package | SMD |
| Lens Transparency | Diffused |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 2.00mm x 2.70mm |
