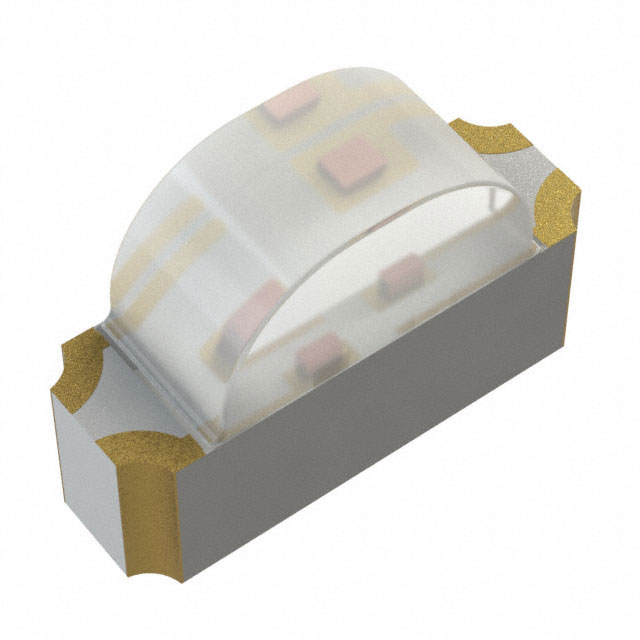

HSMF-C145
LED GREEN/RED CLEAR SMD R/AManufacturer: Broadcom Limited
Categories: LED Indication - Discrete
Quality Control: Learn More
Green, Red 523nm Green, 632nm Red LED Indication - Discrete 3.4V Green, 2V Red 4-SMD
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 88 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD |
| Color | Green, Red |
| Size / Dimension | 3.00mm L x 2.00mm W |
| Mounting Type | Surface Mount, Right Angle |
| Millicandela Rating | 223mcd Green, 79mcd Red |
| Configuration | Common Anode |
| Voltage - Forward (Vf) (Typ) | 3.4V Green, 2V Red |
| Lens Color | Colorless |
| Current - Test | 20mA Green, 20mA Red |
| Viewing Angle | 120° |
| Height (Max) | 1.10mm |
| Wavelength - Peak | 517nm Green, 644nm Red |
| Wavelength - Dominant | 523nm Green, 632nm Red |
| Supplier Device Package | SMD |
| Lens Transparency | Clear |
| Lens Style | Rectangle with Domed Top |
| Lens Size | 2.00mm x 1.00mm |
