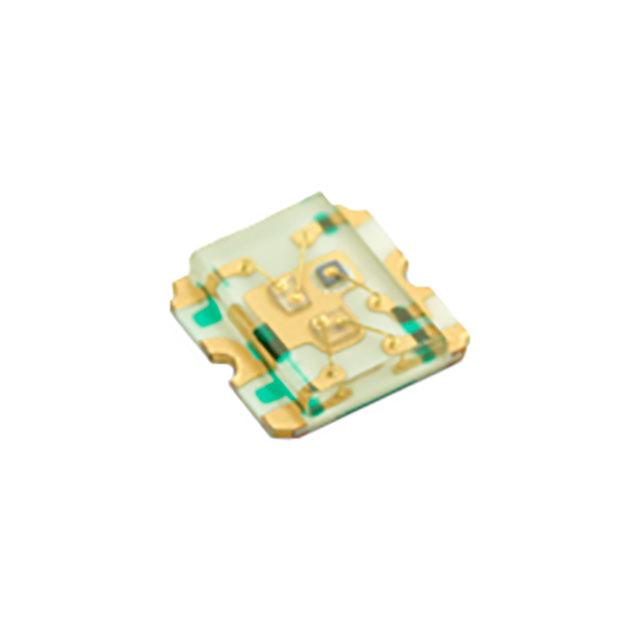

HSMF-C125
LED RGB CHIP TOP MNT SMDManufacturer: Broadcom Limited
Categories: LED Indication - Discrete
Quality Control: Learn More
Red, Green, Blue (RGB) 623nm Red, 522nm Green, 467nm Blue LED Indication - Discrete 2.15V Red, 3.415V Green, 3.425V Blue 0606 (1616 Metric)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 17 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0606 (1616 Metric) |
| Color | Red, Green, Blue (RGB) |
| Size / Dimension | 1.60mm L x 1.60mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | - |
| Configuration | Independent |
| Voltage - Forward (Vf) (Typ) | 2.15V Red, 3.415V Green, 3.425V Blue |
| Lens Color | - |
| Current - Test | 10mA Red, 10mA Green, 10mA Blue |
| Viewing Angle | 130° Red, 150° Green, 150° Blue |
| Height (Max) | 0.50mm |
| Wavelength - Peak | 630nm Red, 515nm Green, 461nm Blue |
| Wavelength - Dominant | 623nm Red, 522nm Green, 467nm Blue |
| Supplier Device Package | - |
| Lens Transparency | - |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.60mm x 1.15mm |
