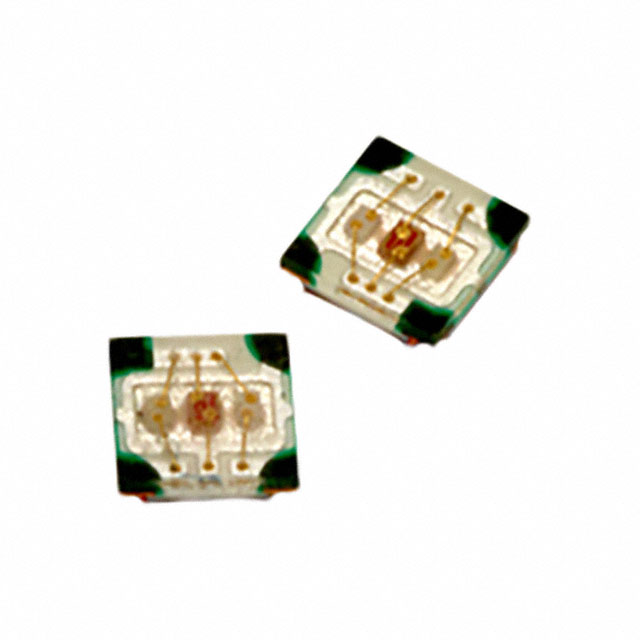

HSMF-C11B
LED RGB 0404 SMDManufacturer: Broadcom Limited
Categories: LED Indication - Discrete
Quality Control: Learn More
Red, Green, Blue (RGB) 626nm Red, 527nm Green, 473nm Blue LED Indication - Discrete 2V Red, 2.85V Green, 2.85V Blue 0404 (1010 Metric)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 17 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0404 (1010 Metric) |
| Color | Red, Green, Blue (RGB) |
| Size / Dimension | 1.08mm L x 1.08mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 165mcd Red, 281.25mcd Green, 65.25mcd Blue |
| Configuration | Common Anode |
| Voltage - Forward (Vf) (Typ) | 2V Red, 2.85V Green, 2.85V Blue |
| Lens Color | - |
| Current - Test | 5mA |
| Viewing Angle | 140° |
| Height (Max) | 0.35mm |
| Wavelength - Peak | 635nm Red, 520nm Green, 469nm Blue |
| Wavelength - Dominant | 626nm Red, 527nm Green, 473nm Blue |
| Supplier Device Package | 0404 |
| Lens Transparency | - |
| Lens Style | Round with Flat Top |
| Lens Size | 1.08mm |
