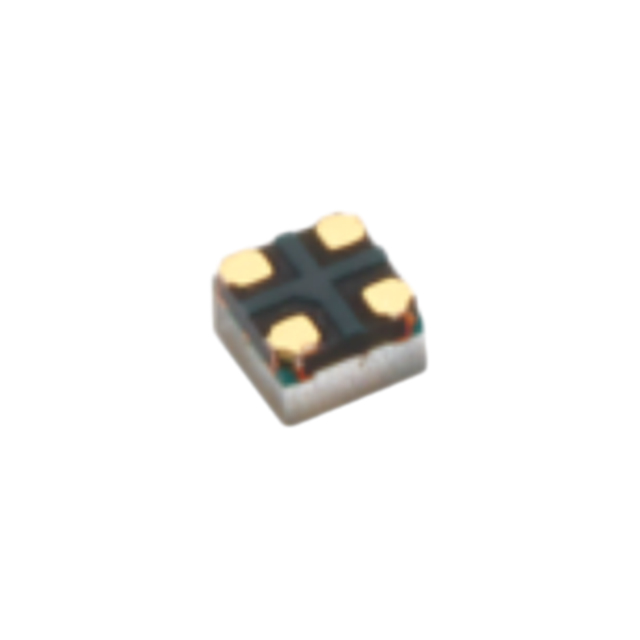

HSMF-C116
LED RGB TOP MNT SMDManufacturer: Broadcom Limited
Categories: LED Indication - Discrete
Quality Control: Learn More
Red, Green, Blue (RGB) 622nm Red, 528nm Green, 471nm Blue LED Indication - Discrete 2V Red, 2.8V Green, 3V Blue 0404 (1010 Metric)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0404 (1010 Metric) |
| Color | Red, Green, Blue (RGB) |
| Size / Dimension | 1.05mm L x 1.05mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 80mcd Red, 220mcd Green, 45mcd Blue |
| Configuration | Common Anode |
| Voltage - Forward (Vf) (Typ) | 2V Red, 2.8V Green, 3V Blue |
| Lens Color | - |
| Current - Test | 10mA Red, 5mA Green, 5mA Blue |
| Viewing Angle | 137° Red, 140° Green, 140° Blue |
| Height (Max) | 0.75mm |
| Wavelength - Peak | 631nm Red, 520nm Green, 466nm Blue |
| Wavelength - Dominant | 622nm Red, 528nm Green, 471nm Blue |
| Supplier Device Package | - |
| Lens Transparency | - |
| Lens Style | Square with Flat Top |
| Lens Size | 1.05mm |
