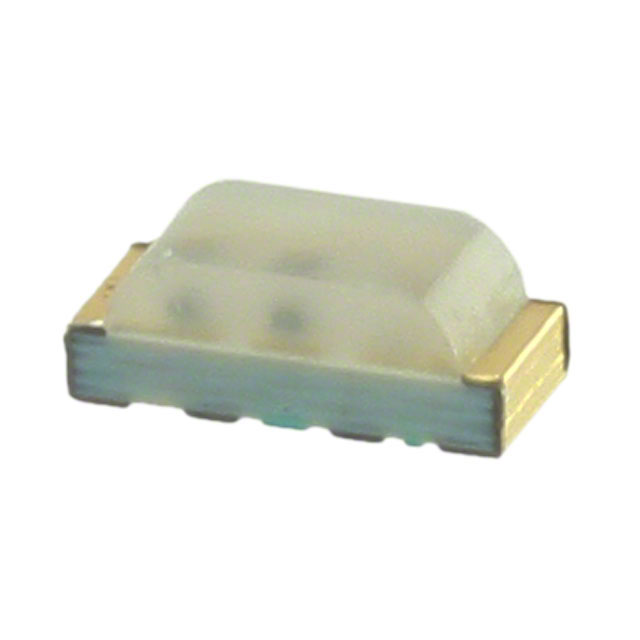

HSMF-C113
LED RGB DIFFUSED CHIP SMD R/AManufacturer: Broadcom Limited
Categories: LED Indication - Discrete
Quality Control: Learn More
Red, Green, Blue (RGB) 626nm Red, 572nm Green, 470nm Blue LED Indication - Discrete 1.9V Red, 2V Green, 3.4V Blue 4-SMD, No Lead
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, No Lead |
| Color | Red, Green, Blue (RGB) |
| Size / Dimension | 2.50mm L x 1.00mm W |
| Mounting Type | Surface Mount, Right Angle |
| Millicandela Rating | 80mcd Red, 50mcd Green, 60mcd Blue |
| Configuration | Common Anode |
| Voltage - Forward (Vf) (Typ) | 1.9V Red, 2V Green, 3.4V Blue |
| Lens Color | White |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | 120° Red, 125° Green, 125° Blue |
| Height (Max) | 1.00mm |
| Wavelength - Peak | 637nm Red, 570nm Green, 468nm Blue |
| Wavelength - Dominant | 626nm Red, 572nm Green, 470nm Blue |
| Supplier Device Package | Chip LED |
| Lens Transparency | Diffused |
| Lens Style | Rectangle with Domed Top |
| Lens Size | 2.10mm x 1.00mm |
