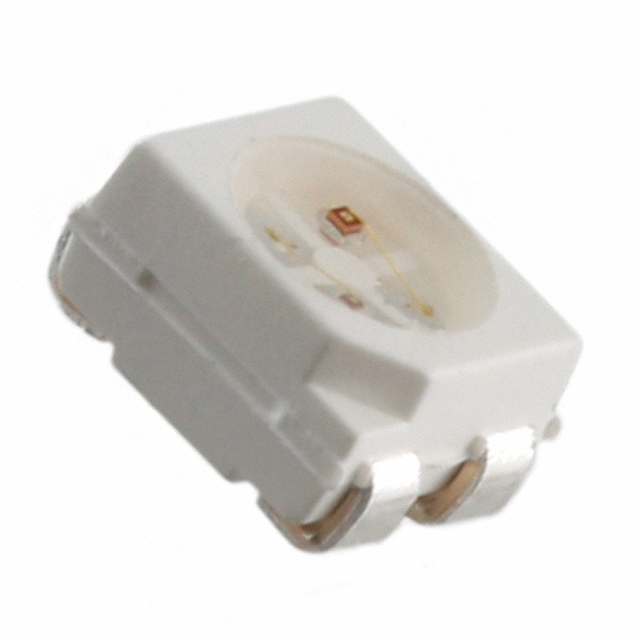

HSMF-A212-A00J1
LED RED/YLW CLEAR 4PLCC SMDManufacturer: Broadcom Limited
Categories: LED Indication - Discrete
Quality Control: Learn More
Red, Yellow 637nm Red, 585nm Yellow LED Indication - Discrete 1.9V Red, 2.2V Yellow 4-PLCC
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: Last Time BuyPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-PLCC |
| Color | Red, Yellow |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 25mcd Red, 12mcd Yellow |
| Configuration | Independent |
| Voltage - Forward (Vf) (Typ) | 1.9V Red, 2.2V Yellow |
| Lens Color | Colorless |
| Current - Test | 20mA Red, 20mA Yellow |
| Viewing Angle | 120° |
| Height (Max) | 2.10mm |
| Wavelength - Peak | 645nm Red, 583nm Yellow |
| Wavelength - Dominant | 637nm Red, 585nm Yellow |
| Supplier Device Package | 4-PLCC |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | 2.20mm Dia |
