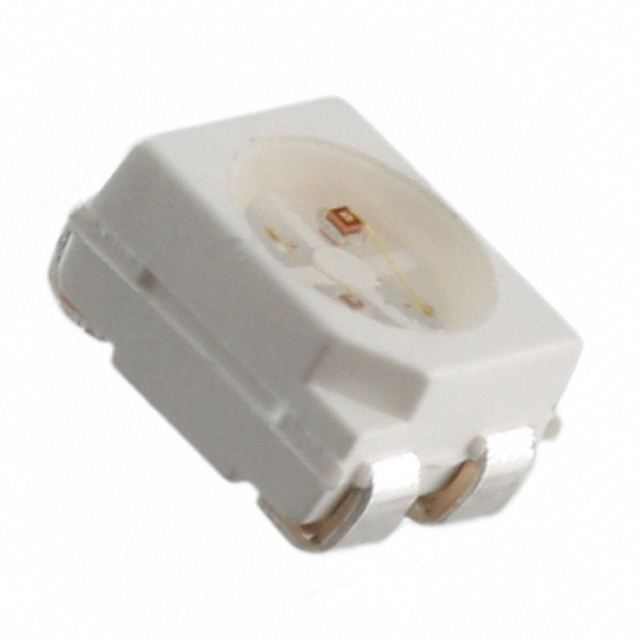

HSMF-A201-A00J1
LED GREEN/RED CLEAR 4PLCC SMDManufacturer: Broadcom Limited
Categories: LED Indication - Discrete
Quality Control: Learn More
Green, Red 569nm Green, 626nm Red LED Indication - Discrete 2.2V Green, 2.2V Red 4-PLCC
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-PLCC |
| Color | Green, Red |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 20mcd Green, 16mcd Red |
| Configuration | Independent |
| Voltage - Forward (Vf) (Typ) | 2.2V Green, 2.2V Red |
| Lens Color | Colorless |
| Current - Test | 20mA Green, 20mA Red |
| Viewing Angle | 120° |
| Height (Max) | 2.10mm |
| Wavelength - Peak | 565nm Green, 635nm Red |
| Wavelength - Dominant | 569nm Green, 626nm Red |
| Supplier Device Package | 4-PLCC |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | 2.20mm Dia |
