HSMD-S670
LED ORANGE DIFFUSED CHIP SMDManufacturer: Broadcom Limited
Categories: LED Indication - Discrete
Quality Control: Learn More

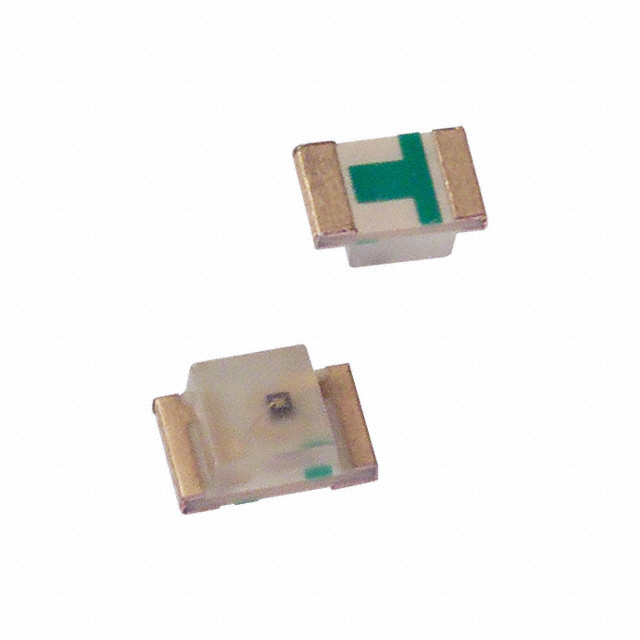

Broadcom Limited HSMD-S670, a SunPower series orange diffused chip LED, is designed for surface mount applications in the 0805 (2012 Metric) package. This discrete LED features a standard configuration with a forward voltage of 1.9V at a test current of 20mA, emitting light at a dominant wavelength of 605nm and a peak wavelength of 609nm. The diffused lens provides a wide viewing angle of 165°, with a millicandela rating of 65mcd. The component measures 2.00mm in length and 1.25mm in width, with a maximum height of 0.80mm and a lens measuring 1.30mm x 1.25mm. Supplied on tape and reel, this LED is utilized in applications requiring reliable visual indication, including automotive, industrial controls, and consumer electronics.
Additional Information
Series: SunPowerRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0805 (2012 Metric) |
| Color | Orange |
| Size / Dimension | 2.00mm L x 1.25mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 65mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.9V |
| Lens Color | - |
| Current - Test | 20mA |
| Viewing Angle | 165° |
| Height (Max) | 0.80mm |
| Wavelength - Peak | 609nm |
| Wavelength - Dominant | 605nm |
| Supplier Device Package | Chip LED |
| Lens Transparency | Diffused |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.30mm x 1.25mm |
