HSMB-C190
LED BLUE CLEAR CHIP SMDManufacturer: Broadcom Limited
Categories: LED Indication - Discrete
Quality Control: Learn More

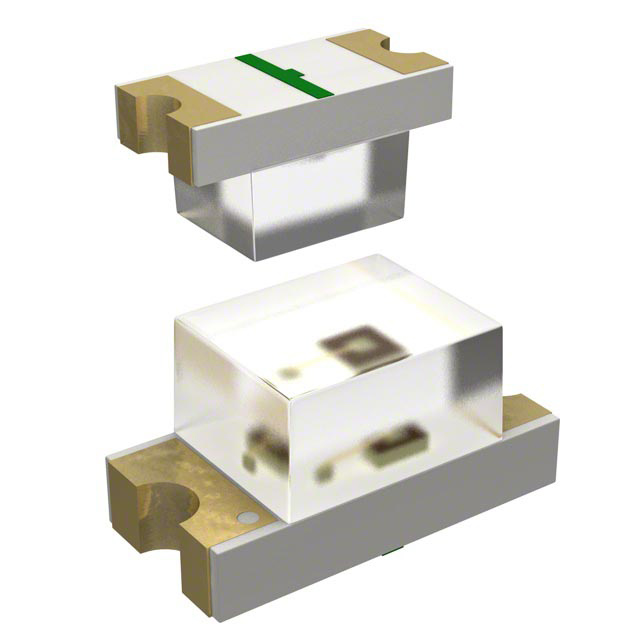

Broadcom Limited HSMB-C190 is a blue 466nm LED indication component, supplied in a 0603 (1608 Metric) surface mount package. This clear lens, chip LED features a standard configuration with a typical forward voltage of 3.8V and a test current of 20mA, producing a millicandela rating of 6mcd. The component boasts a wide 170° viewing angle and a 428nm peak wavelength. Its dimensions are 1.60mm L x 0.80mm W, with a maximum height of 0.80mm. The HSMB-C190 is typically utilized in industrial and consumer electronics applications requiring precise visual feedback. It is supplied on Tape & Reel (TR).
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0603 (1608 Metric) |
| Color | Blue |
| Size / Dimension | 1.60mm L x 0.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 6mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.8V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 170° |
| Height (Max) | 0.80mm |
| Wavelength - Peak | 428nm |
| Wavelength - Dominant | 466nm |
| Supplier Device Package | Chip LED |
| Lens Transparency | Clear |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.00mm x 0.80mm |
