HSMB-C150
LED BLUE DIFFUSED CHIP SMDManufacturer: Broadcom Limited
Categories: LED Indication - Discrete
Quality Control: Learn More

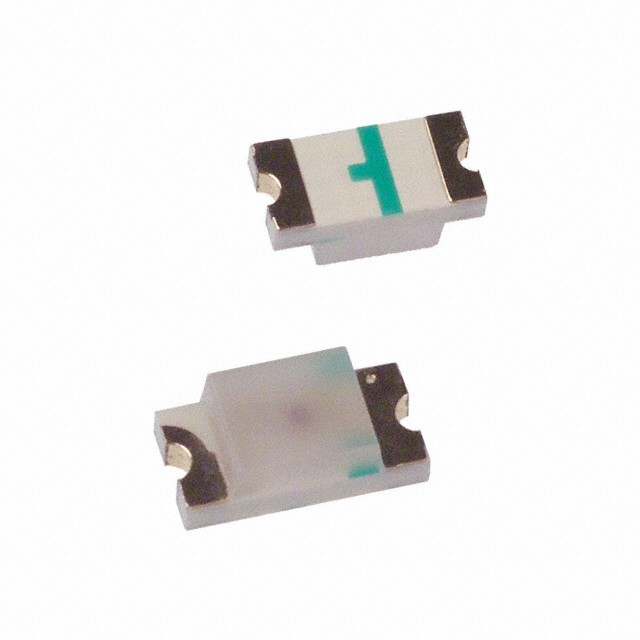

Broadcom Limited HSMB-C150 is a blue diffused chip LED designed for surface mount applications. This component features a dominant wavelength of 466nm and a typical forward voltage of 3.8V at 20mA test current, delivering a millicandela rating of 6mcd. The LED is housed in a 1206 (3216 Metric) package with overall dimensions of 3.20mm L x 1.60mm W and a maximum height of 1.10mm. It utilizes a diffused lens with a white appearance and a rectangular, flat-top style measuring 2.00mm x 1.60mm, providing a wide 170° viewing angle. This component is commonly employed in industrial and consumer electronics for indication purposes. It is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 1206 (3216 Metric) |
| Color | Blue |
| Size / Dimension | 3.20mm L x 1.60mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 6mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.8V |
| Lens Color | White |
| Current - Test | 20mA |
| Viewing Angle | 170° |
| Height (Max) | 1.10mm |
| Wavelength - Peak | 428nm |
| Wavelength - Dominant | 466nm |
| Supplier Device Package | Chip LED |
| Lens Transparency | Diffused |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 2.00mm x 1.60mm |
