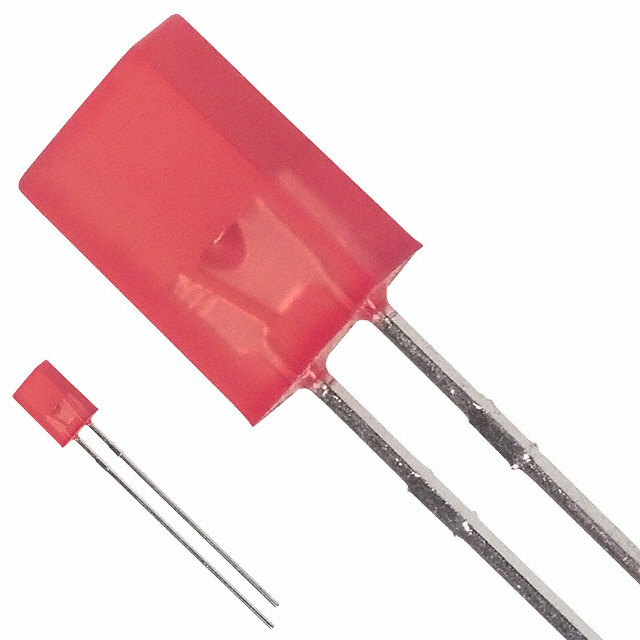

HLMP-S100
LED RED DIFF RECT 2MMX5MM T/HManufacturer: Broadcom Limited
Categories: LED Indication - Discrete
Quality Control: Learn More
Red 637nm LED Indication - Discrete 1.8V Radial
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 22 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 7.5mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.8V |
| Lens Color | Red |
| Current - Test | 20mA |
| Viewing Angle | 110° |
| Height (Max) | 8.00mm |
| Wavelength - Peak | 645nm |
| Wavelength - Dominant | 637nm |
| Supplier Device Package | Rectangular 2mmx5mm |
| Lens Transparency | Diffused |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 5.06mm x 2.11mm |
