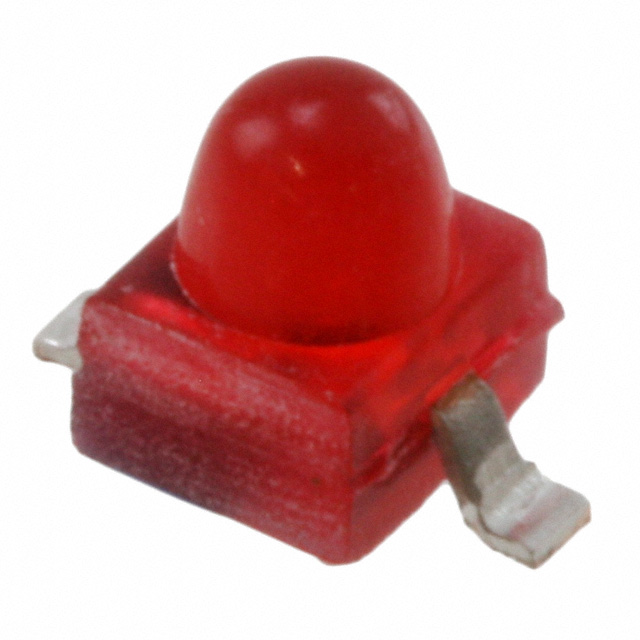

HLMP-Q150-F0011

LED RED DIFFUSED GULL WING SMD

Manufacturer: Broadcom Limited

Categories: LED Indication - Discrete

Quality Control: Learn More

Broadcom Limited HLMP-Q150-F0011 is a red diffused gull wing surface mount LED from the HLMP-Qxxx series. This discrete indicator component features a standard configuration with a forward voltage (Vf) of 1.6V at a test current of 1mA. The dominant wavelength is 637nm, with a peak wavelength of 645nm. It offers a millicandela rating of 1.8mcd with a 90° viewing angle. The LED has a diffused red lens with a round, domed top, measuring 1.78mm in diameter. The overall package dimensions are 2.08mm in length and 2.21mm in width, with a maximum height of 2.92mm. The component is supplied in a 2-SMD, Gull Wing package, presented on Tape & Reel (TR). This component finds application in industrial automation, consumer electronics, and medical equipment for visual status indication.

Additional Information

Series: HLMP-QxxxRoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:
Technical Details:
Features-
PackagingTape & Reel (TR)
Package / Case2-SMD, Gull Wing
ColorRed
Size / Dimension2.08mm L x 2.21mm W
Mounting TypeSurface Mount
Millicandela Rating1.8mcd
ConfigurationStandard
Voltage - Forward (Vf) (Typ)1.6V
Lens ColorRed
Current - Test1mA
Viewing Angle90°
Height (Max)2.92mm
Wavelength - Peak645nm
Wavelength - Dominant637nm
Supplier Device PackageGull Wing
Lens TransparencyDiffused
Lens StyleRound with Domed Top
Lens Size1.78mm Dia
