HLMP-P202
LED RED DIFFUSED AXIAL T/H AXIALManufacturer: Broadcom Limited
Categories: LED Indication - Discrete
Quality Control: Learn More
Broadcom Limited HLMP-Pxxx series HLMP-P202 is a red diffused axial through-hole LED. This discrete indicator component features a standard configuration with a dominant wavelength of 626nm and a peak wavelength of 635nm. The LED exhibits a typical forward voltage of 1.8V at a test current of 10mA, producing a luminous intensity of 5mcd. The component's axial package with flat leads has dimensions of 2.09mm L x 2.21mm W, with a maximum height of 2.44mm. Its diffused lens, with a white lens color and a diameter of 1.78mm, provides a wide viewing angle of 125°. This component is commonly utilized in general indication applications across various industrial sectors. The HLMP-P202 is supplied in bulk packaging.
Additional Information
Series: HLMP-PxxxRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Axial, Flat Leads |
| Color | Red |
| Size / Dimension | 2.09mm L x 2.21mm W |
| Mounting Type | Through Hole, Axial |
| Millicandela Rating | 5mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.8V |
| Lens Color | White |
| Current - Test | 10mA |
| Viewing Angle | 125° |
| Height (Max) | 2.44mm |
| Wavelength - Peak | 635nm |
| Wavelength - Dominant | 626nm |
| Supplier Device Package | Axial |
| Lens Transparency | Diffused |
| Lens Style | Round with Flat Top |
| Lens Size | 1.78mm Dia |
Request a Quote
Clients Also Buy
HLMP-P156-EG011
LED RED CLEAR GULL WING SMD

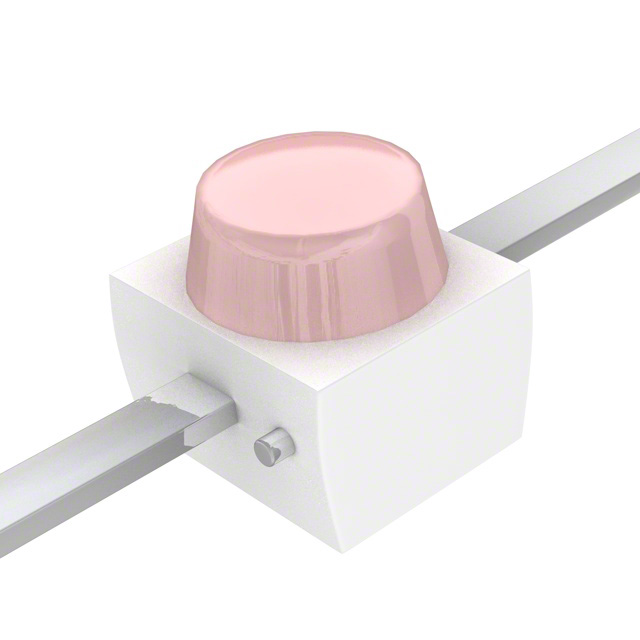

HLMP-P156-EG031
