HLMP-LM73-35PDD
LED GREEN 4MM OVAL T/HManufacturer: Broadcom Limited
Categories: LED Indication - Discrete
Quality Control: Learn More

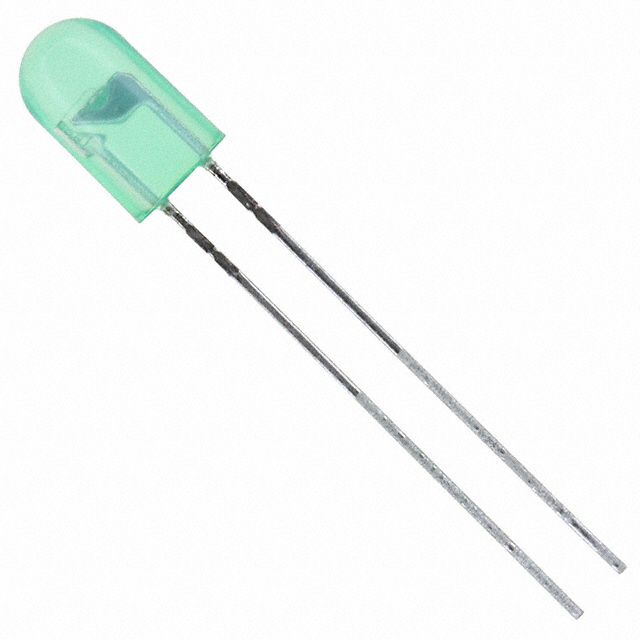

Broadcom Limited HLMP-LM73-35PDD is a through-hole mounted LED designed for discrete indication applications. This component features a green 530nm dominant wavelength, emitting a diffused light with a viewing angle of 40° x 100°. The 4mm oval package provides a compact solution for board-level visual status signaling. Its radial package configuration is suitable for automated insertion processes. This LED is commonly utilized in industrial control panels, automotive dashboards, and consumer electronics where reliable visual feedback is essential. The component is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Green |
| Size / Dimension | 3.80mm L x 3.00mm W |
| Mounting Type | Through Hole |
| Millicandela Rating | - |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | - |
| Lens Color | - |
| Current - Test | - |
| Viewing Angle | 40° x 100° |
| Height (Max) | 7.46mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 530nm |
| Supplier Device Package | 4mm Oval |
| Lens Transparency | - |
| Lens Style | - |
| Lens Size | - |
