HLMP-HG75-XY0DD
LED RED DIFFUSED 5MM OVAL T/HManufacturer: Broadcom Limited
Categories: LED Indication - Discrete
Quality Control: Learn More

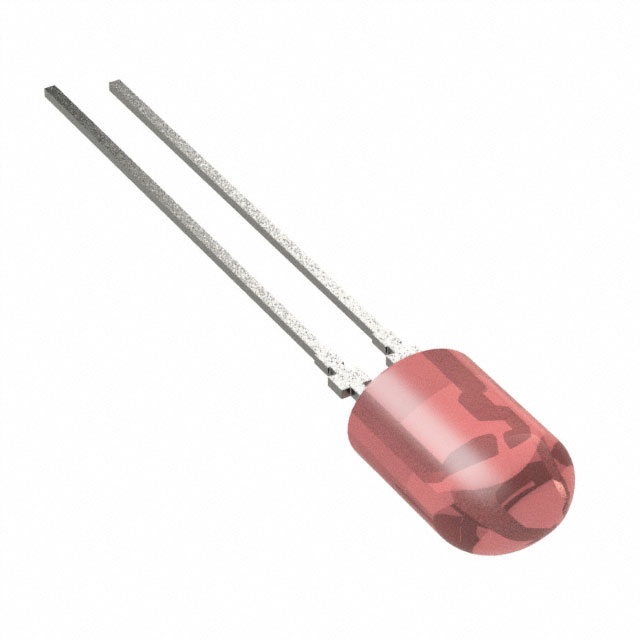

Broadcom Limited HLMP-HG75-XY0DD is a red diffused 5mm oval LED designed for through-hole mounting. This discrete component emits light at a dominant wavelength of 626nm, with a peak wavelength of 634nm. It operates with a typical forward voltage of 2.1V and a test current of 20mA, achieving a millicandela rating of 2030mcd. The LED features a diffused red lens measuring 5.20mm x 3.80mm with a domed top, providing a wide viewing angle of 100° in one axis and 40° in the other. Packaged in cut tape (CT), this component is suitable for applications in industrial automation, consumer electronics, and medical equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 88 week(s)Product Status: ActivePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Cut Tape (CT) |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 2030mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Lens Color | Red |
| Current - Test | 20mA |
| Viewing Angle | 100°, 40° |
| Height (Max) | 11.30mm |
| Wavelength - Peak | 634nm |
| Wavelength - Dominant | 626nm |
| Supplier Device Package | 5mm Oval |
| Lens Transparency | Diffused |
| Lens Style | Oval with Domed Top |
| Lens Size | 5.20mm x 3.80mm |
