HLMP-HG74-XY0DD
LED RED DIFFUSED 5MM OVAL T/HManufacturer: Broadcom Limited
Categories: LED Indication - Discrete
Quality Control: Learn More

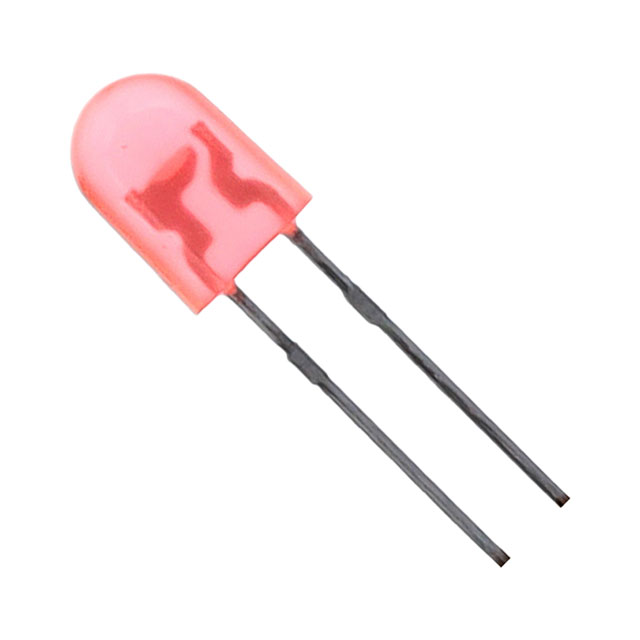

This Broadcom Limited electronic component, part number HLMP-HG74-XY0DD, is a red diffused 5mm oval through-hole LED. Featuring a dominant wavelength of 626nm and a peak wavelength of 634nm, this component offers a typical forward voltage of 2.1V at 20mA test current. Its diffused lens provides a wide viewing angle of 100° and 40°, with a millicandela rating of 2030mcd. The LED is housed in a radial package, with a lens color and transparency matching the red diffused output. This component is suitable for various industrial applications requiring reliable visual indication. It is supplied in Cut Tape (CT) packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 88 week(s)Product Status: ActivePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Cut Tape (CT) |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 2030mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Lens Color | Red |
| Current - Test | 20mA |
| Viewing Angle | 100°, 40° |
| Height (Max) | 7.00mm |
| Wavelength - Peak | 634nm |
| Wavelength - Dominant | 626nm |
| Supplier Device Package | 5mm Oval |
| Lens Transparency | Diffused |
| Lens Style | Oval with Domed Top |
| Lens Size | 5.20mm x 3.80mm |
