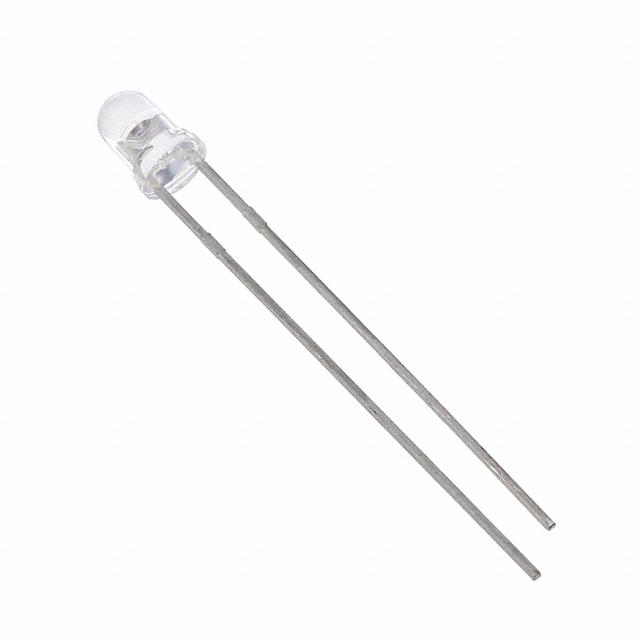

HLMP-EL3G-VXK00
LED AMBER T-1 3/4 T/HManufacturer: Broadcom Limited
Categories: LED Indication - Discrete
Quality Control: Learn More
Amber 626nm LED Indication - Discrete 2.1V Radial
Additional Information
Series: HLMP-ElxxRoHS Status: RoHS CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | Radial |
| Color | Amber |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 6750mcd |
| Configuration | - |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Lens Color | - |
| Current - Test | 20mA |
| Viewing Angle | 30° |
| Height (Max) | 8.91mm |
| Wavelength - Peak | 634nm |
| Wavelength - Dominant | 626nm |
| Supplier Device Package | T-1 3/4 (5mm) |
| Lens Transparency | - |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
