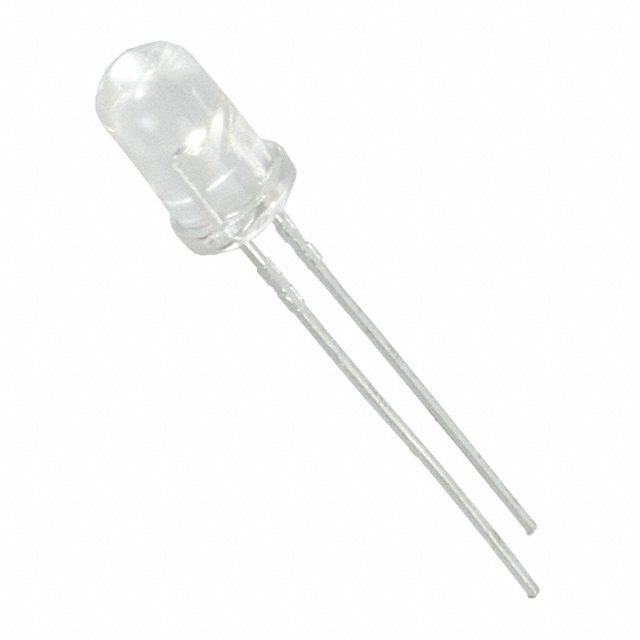

HLMP-EG35-TW0DD
LED RED CLEAR T-1 3/4 T/HManufacturer: Broadcom Limited
Categories: LED Indication - Discrete
Quality Control: Learn More
Broadcom Limited HLMP-EG35-TW0DD is a red, clear lens, through-hole mounted LED with a T-1 3/4 package. This discrete LED emits light at a dominant wavelength of 625nm and a peak wavelength of 626nm, providing a typical forward voltage of 2.1V at 20mA test current. It achieves a high luminous intensity of 4850mcd with a narrow viewing angle of 30°. The component is supplied in Cut Tape packaging. This LED is suitable for indication applications across various industries, including industrial automation, consumer electronics, and automotive systems.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Cut Tape (CT)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Cut Tape (CT) |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 4850mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 30° |
| Height (Max) | 8.91mm |
| Wavelength - Peak | 626nm |
| Wavelength - Dominant | 625nm |
| Supplier Device Package | T-1 3/4 |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
