HLMP-DB25-B00DD
LED BLUE CLEAR T-1 3/4 T/HManufacturer: Broadcom Limited
Categories: LED Indication - Discrete
Quality Control: Learn More

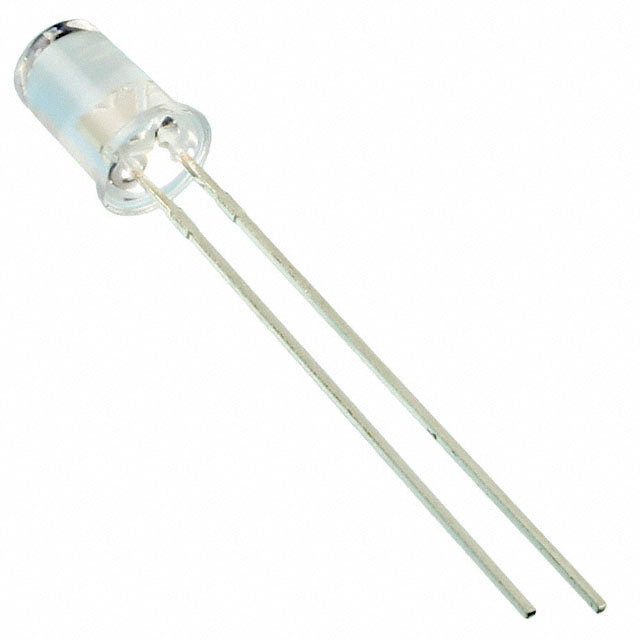

Broadcom Limited HLMP-DB25-B00DD is a blue LED with a dominant wavelength of 470nm and a peak wavelength of 464nm. This through-hole mounted component features a clear, colorless lens with a domed top, measuring 5mm (T-1 3/4). The forward voltage is typically 3.2V, with a standard configuration and a millicandela rating of 40mcd at a test current of 20mA. The viewing angle is 25°. This discrete LED is commonly utilized for indication purposes in industrial automation, consumer electronics, and automotive applications. The packaging is Tape & Box (TB).
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Box (TB)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Box (TB) |
| Package / Case | Radial |
| Color | Blue |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 40mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.2V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 25° |
| Height (Max) | 9.19mm |
| Wavelength - Peak | 464nm |
| Wavelength - Dominant | 470nm |
| Supplier Device Package | T-1 3/4 |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
