HLMP-CW16-R0000
LED WHITE CLEAR T-1 3/4 T/HManufacturer: Broadcom Limited
Categories: LED Indication - Discrete
Quality Control: Learn More

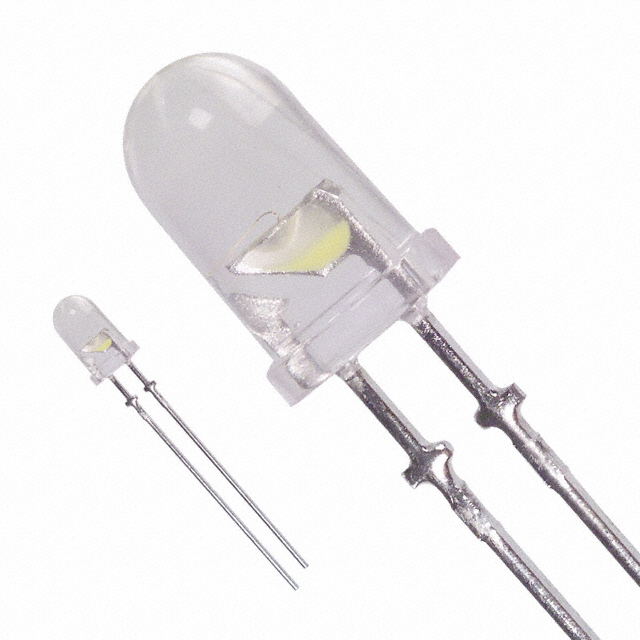

Broadcom Limited HLMP-CW16-R0000 is a through-hole mounted white LED with a clear, colorless lens. This T-1 3/4 package features a domed top and a standard configuration, providing a narrow viewing angle of 15°. Operating with a typical forward voltage of 3.2V, this component delivers a luminous intensity of 1500mcd at a test current of 20mA. The radial package is suitable for various industrial automation, medical equipment, and consumer electronics applications requiring reliable visual indication.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | White |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 1500mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.2V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 15° |
| Height (Max) | 8.91mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | - |
| Supplier Device Package | T-1 3/4 |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
