HLMP-CB13-UX000
LED BLUE CLEAR T-1 3/4 T/HManufacturer: Broadcom Limited
Categories: LED Indication - Discrete
Quality Control: Learn More

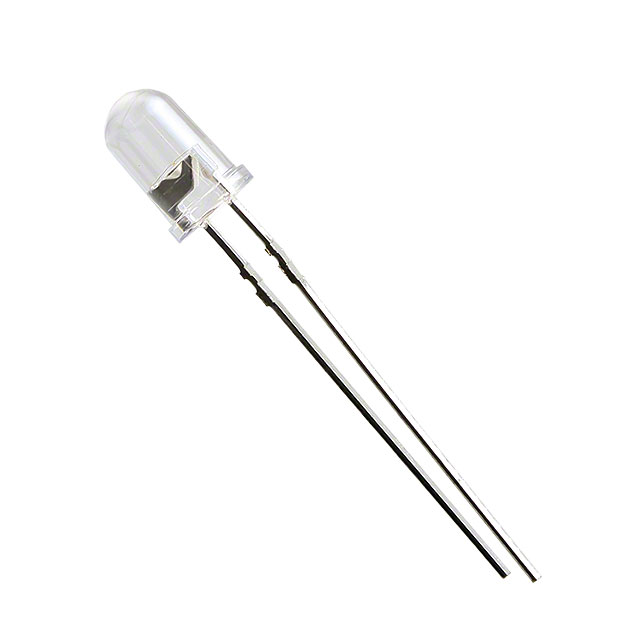

Broadcom Limited HLMP-CB13-UX000 is a blue, through-hole LED with a dominant wavelength of 470nm and a peak wavelength of 464nm. This discrete indicator features a clear, colorless lens with a domed top, measuring 5mm (T-1 3/4). The LED exhibits a typical forward voltage of 3.2V and a test current of 20mA, delivering a luminous intensity of 6250mcd. Its narrow viewing angle of 15° makes it suitable for applications requiring precise directional illumination. Commonly utilized in industrial automation, consumer electronics, and automotive signaling, this component is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Blue |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 6250mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.2V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 15° |
| Height (Max) | 8.91mm |
| Wavelength - Peak | 464nm |
| Wavelength - Dominant | 470nm |
| Supplier Device Package | T-1 3/4 |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
