HLMP-AB86-MQ0ZZ
LED BLUE CLEAR 5MM OVAL T/HManufacturer: Broadcom Limited
Categories: LED Indication - Discrete
Quality Control: Learn More

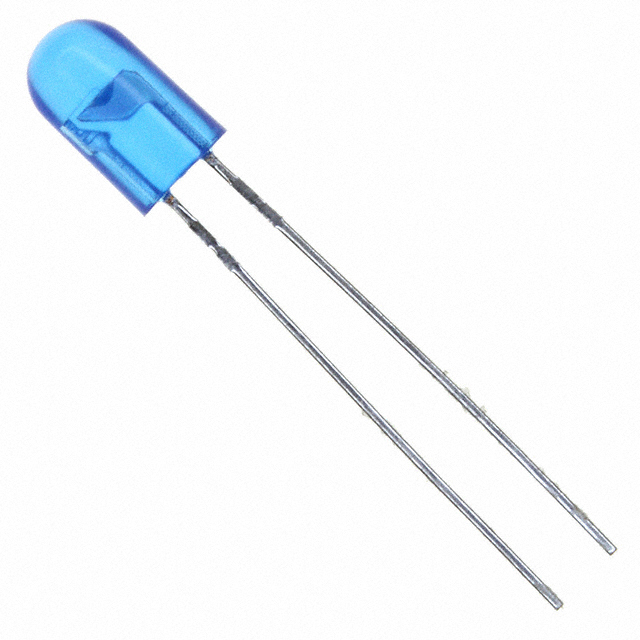

The Broadcom Limited HLMP-AB86-MQ0ZZ is a through-hole mounted blue LED with a dominant wavelength of 470nm and a peak wavelength of 464nm. This discrete LED features a clear, oval lens with a domed top, measuring 5.50mm x 3.80mm. It operates at a typical forward voltage of 3.2V and is rated for 1010mcd at a test current of 20mA. The viewing angle is specified as 70° for the horizontal and 35° for the vertical plane. This component is suitable for general indication applications across various industries, including industrial automation and consumer electronics. It is supplied in Tape & Box (TB) packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Box (TB)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Box (TB) |
| Package / Case | Radial |
| Color | Blue |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 1010mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.2V |
| Lens Color | Blue |
| Current - Test | 20mA |
| Viewing Angle | 70°, 35° |
| Height (Max) | - |
| Wavelength - Peak | 464nm |
| Wavelength - Dominant | 470nm |
| Supplier Device Package | 5mm Oval |
| Lens Transparency | Clear |
| Lens Style | Oval with Domed Top |
| Lens Size | 5.50mm x 3.80mm |
Request a Quote
