HLMP-6720-F0021
LED YELLOW DIFF YOKE LEAD SMDManufacturer: Broadcom Limited
Categories: LED Indication - Discrete
Quality Control: Learn More
Broadcom Limited HLMP-6720-F0021 is a yellow diffused surface mount LED from the HLMP-6xxx series. This component features a 5V forward voltage (Vf) with a typical current of 10mA for testing. The dominant wavelength is 585nm, with a peak wavelength of 583nm, providing a luminous intensity of 2mcd. The LED is housed in a 2-SMD, Yoke Bend package with a diffused lens measuring 1.78mm in diameter and a height of 2.92mm. Its dimensions are 2.08mm L x 2.21mm W, and it offers a wide 90° viewing angle. This component is commonly utilized in industrial automation, medical equipment, and consumer electronics for status indication. It is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: HLMP-6xxxRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Yoke Bend |
| Color | Yellow |
| Size / Dimension | 2.08mm L x 2.21mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 2mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 5V |
| Lens Color | - |
| Current - Test | 10mA |
| Viewing Angle | 90° |
| Height (Max) | 2.92mm |
| Wavelength - Peak | 583nm |
| Wavelength - Dominant | 585nm |
| Supplier Device Package | Yoke Lead |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 1.78mm Dia |
Request a Quote
Clients Also Buy
HLMP-6400-F001S
LED YELLOW DIFFUSED AXIAL T/H

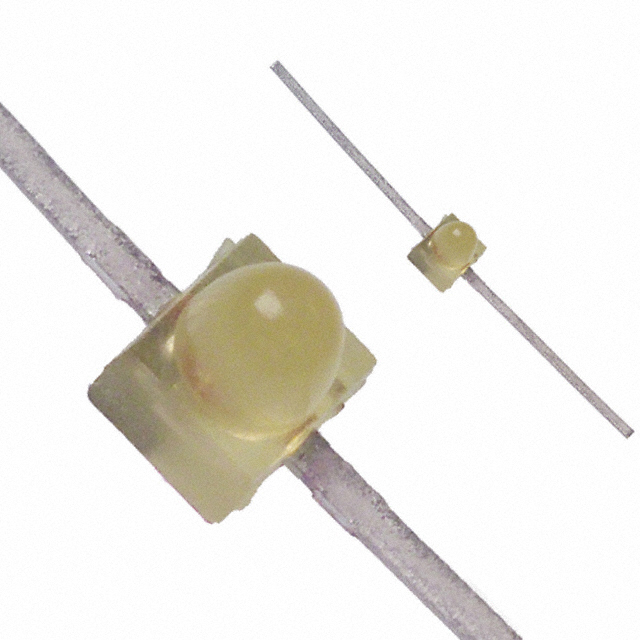

HLMP-6400-JK000
