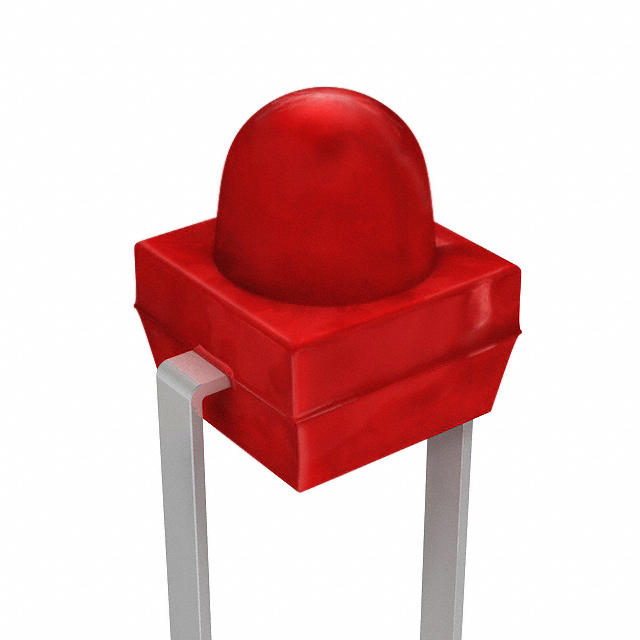

HLMP-6300-F001S
LED RED DIFFUSED AXIAL T/HManufacturer: Broadcom Limited
Categories: LED Indication - Discrete
Quality Control: Learn More
Red 626nm LED Indication - Discrete 1.8V Axial, Right Angle Bend (2.54mm Center)
Additional Information
Series: HLMP-6xxxRoHS Status: ROHS3 CompliantManufacturer Lead Time: 17 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Axial, Right Angle Bend (2.54mm Center) |
| Color | Red |
| Size / Dimension | 2.08mm L x 2.21mm W |
| Mounting Type | Through Hole |
| Millicandela Rating | 10mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.8V |
| Lens Color | Red |
| Current - Test | 10mA |
| Viewing Angle | 90° |
| Height (Max) | 2.92mm |
| Wavelength - Peak | 635nm |
| Wavelength - Dominant | 626nm |
| Supplier Device Package | Axial |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 1.78mm Dia |
