HLMP-3950-LM000
LED GREEN CLEAR T-1 3/4 T/HManufacturer: Broadcom Limited
Categories: LED Indication - Discrete
Quality Control: Learn More

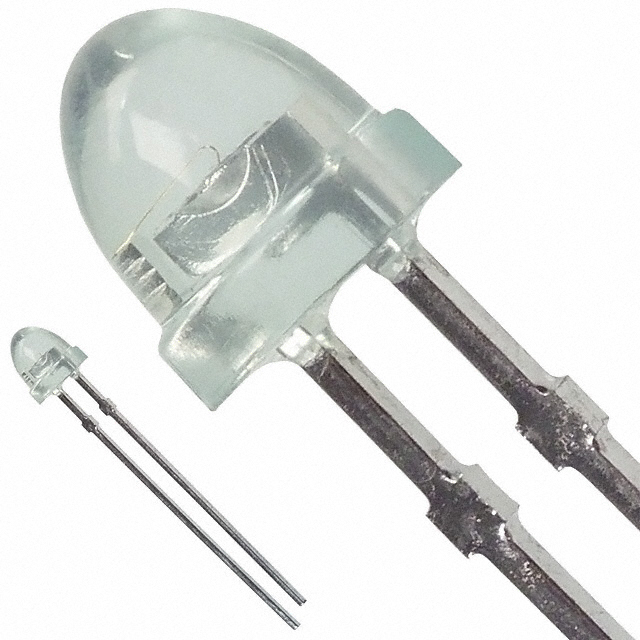

Broadcom Limited HLMP-3950-LM000 is a green through-hole LED with a T-1 3/4 package. This discrete component emits light at a dominant wavelength of 569nm and a peak wavelength of 565nm, providing a typical forward voltage of 2.2V at 20mA test current. The clear, domed top lens offers a 24° viewing angle and a millicandela rating of 300mcd. Designed for through-hole mounting, this radial package is supplied in bulk. Applications for this component include industrial automation, medical equipment, and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Green |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 300mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Lens Color | - |
| Current - Test | 20mA |
| Viewing Angle | 24° |
| Height (Max) | 12.44mm |
| Wavelength - Peak | 565nm |
| Wavelength - Dominant | 569nm |
| Supplier Device Package | T-1 3/4 |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
