HLMP-3507-EF000
LED GREEN DIFFUSED T-1 3/4 T/HManufacturer: Broadcom Limited
Categories: LED Indication - Discrete
Quality Control: Learn More

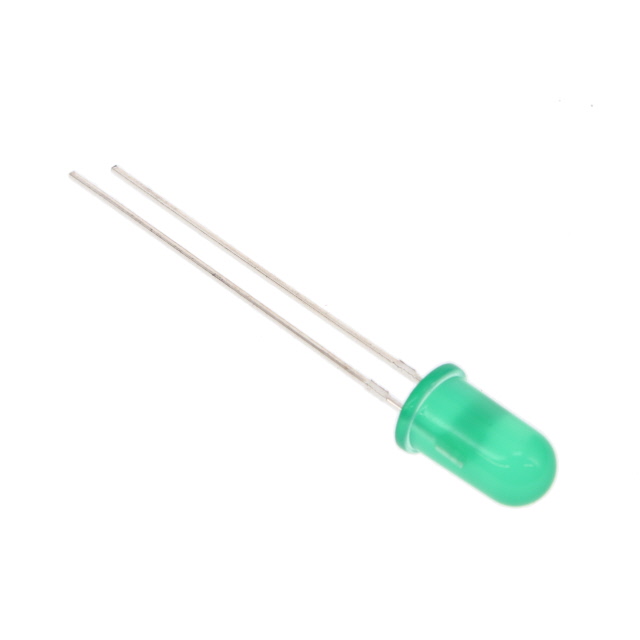

Broadcom Limited HLMP-3507-EF000 is a diffused, green T-1 3/4 through-hole LED with a dominant wavelength of 569nm and a peak wavelength of 565nm. This component features a forward voltage of 2.1V (typical) at a test current of 10mA, delivering a luminous intensity of 13.9mcd. The round, domed top lens provides a 60° viewing angle. The component is supplied in bulk packaging. This discrete LED is suitable for general indication applications across various industries, including consumer electronics and industrial control systems, where reliable visual feedback is required.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Green |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 13.9mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Lens Color | Green |
| Current - Test | 10mA |
| Viewing Angle | 60° |
| Height (Max) | 9.19mm |
| Wavelength - Peak | 565nm |
| Wavelength - Dominant | 569nm |
| Supplier Device Package | T-1 3/4 |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
