HLMP-3301-FG000
LED RED DIFFUSED T-1 3/4 T/HManufacturer: Broadcom Limited
Categories: LED Indication - Discrete
Quality Control: Learn More

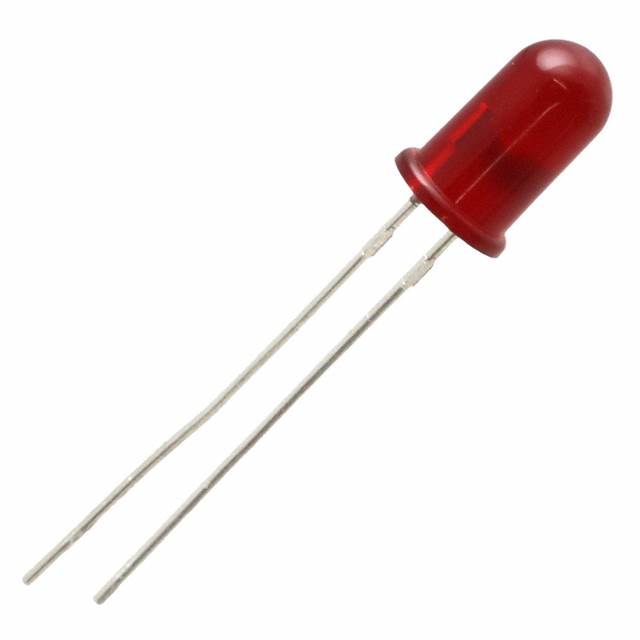

The Broadcom Limited HLMP-3301-FG000 is a red diffused T-1 3/4 through-hole LED, ideal for general indication applications. This discrete component operates with a typical forward voltage (Vf) of 1.9V and a forward current of 10mA, achieving a dominant wavelength of 626nm and a peak wavelength of 635nm. It offers a luminous intensity of 11.3mcd at 10mA with a 60° viewing angle. The diffused lens provides a wide, uniform light output. This component is commonly utilized in industrial automation, consumer electronics, and medical equipment where reliable visual feedback is essential. The HLMP-3301-FG000 is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 11.3mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.9V |
| Lens Color | Red |
| Current - Test | 10mA |
| Viewing Angle | 60° |
| Height (Max) | 9.19mm |
| Wavelength - Peak | 635nm |
| Wavelength - Dominant | 626nm |
| Supplier Device Package | T-1 3/4 |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
