HLMP-1503-DE000
LED GREEN DIFFUSED T-1 T/HManufacturer: Broadcom Limited
Categories: LED Indication - Discrete
Quality Control: Learn More

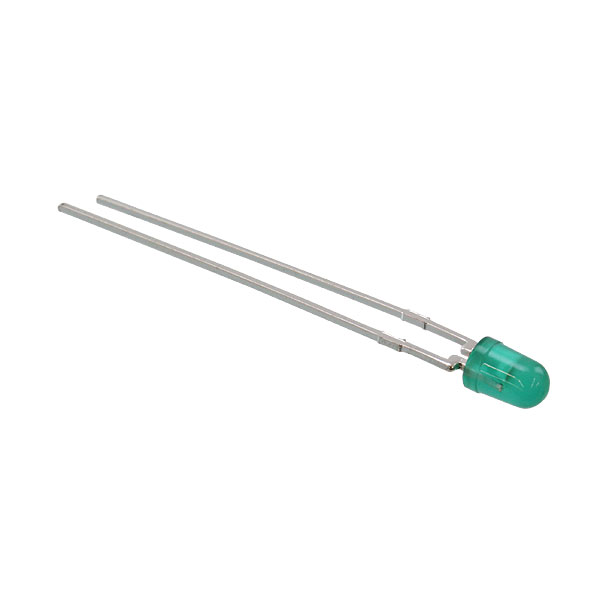

Broadcom Limited HLMP-1503-DE000 is a diffused, green LED with a dominant wavelength of 569nm and a peak wavelength of 565nm. This through-hole component features a T-1 size radial package and a round, domed top lens with green diffusion. The typical forward voltage is 2.1V, with a test current of 10mA yielding a luminous intensity of 8.8mcd. The viewing angle is 60 degrees. This discrete LED is suitable for various indication applications across industries such as consumer electronics and industrial control systems. It is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Green |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 8.8mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Lens Color | Green |
| Current - Test | 10mA |
| Viewing Angle | 60° |
| Height (Max) | 6.35mm |
| Wavelength - Peak | 565nm |
| Wavelength - Dominant | 569nm |
| Supplier Device Package | T-1 |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 3mm, T-1 |
