HLMP-1401-EF000
LED YELLOW DIFFUSED T-1 T/HManufacturer: Broadcom Limited
Categories: LED Indication - Discrete
Quality Control: Learn More

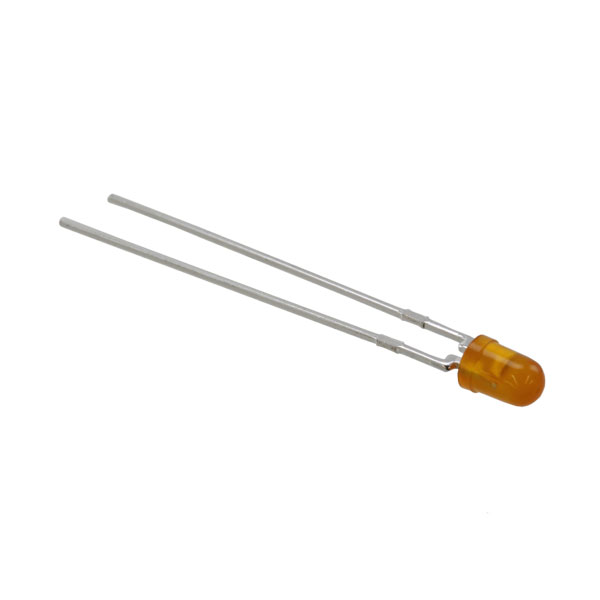

Broadcom Limited HLMP-1401-EF000 is a yellow, diffused T-1 through-hole LED designed for indication applications. Emitting at a dominant wavelength of 585nm and a peak wavelength of 583nm, this component provides a typical forward voltage of 2V at 10mA test current, yielding a luminous intensity of 12.05mcd. The diffused lens with a domed top ensures a wide 60° viewing angle for optimal visibility. This discrete LED is supplied in bulk packaging and is suitable for use in industrial control, consumer electronics, and automotive systems where reliable visual status indication is critical. Its radial package allows for straightforward integration into printed circuit boards.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Yellow |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 12.05mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2V |
| Lens Color | Yellow |
| Current - Test | 10mA |
| Viewing Angle | 60° |
| Height (Max) | 6.35mm |
| Wavelength - Peak | 583nm |
| Wavelength - Dominant | 585nm |
| Supplier Device Package | T-1 |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 3mm, T-1 |
