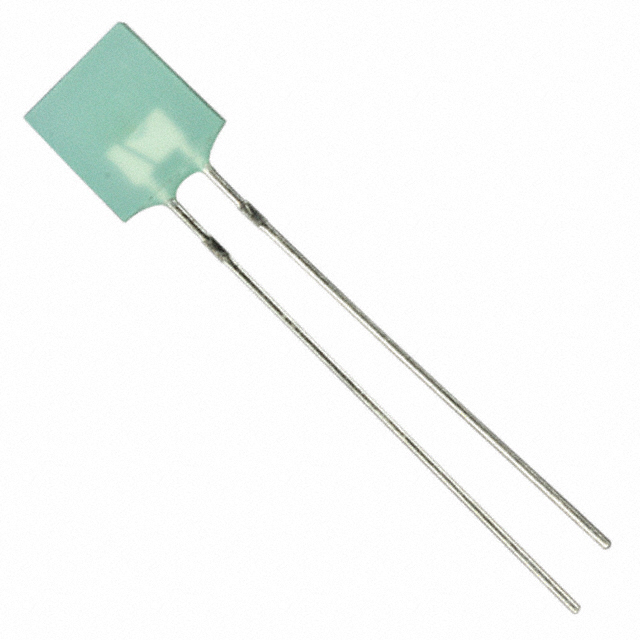

HLMP-0504
LED GRN DIFFUSED RECTANGULAR T/HManufacturer: Broadcom Limited
Categories: LED Indication - Discrete
Quality Control: Learn More
Green 569nm LED Indication - Discrete 2.2V Radial
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Green |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 2.6mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Lens Color | Green |
| Current - Test | 20mA |
| Viewing Angle | 100° |
| Height (Max) | 8.00mm |
| Wavelength - Peak | 565nm |
| Wavelength - Dominant | 569nm |
| Supplier Device Package | Rectangular |
| Lens Transparency | Diffused |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 7.31mm x 2.35mm |
