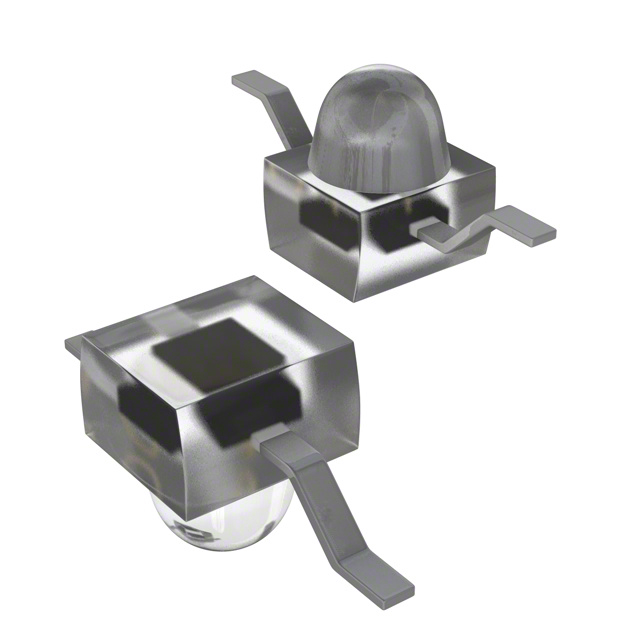

HLMA-QL00-S0031
LED AMBER CLEAR SMDManufacturer: Broadcom Limited
Categories: LED Indication - Discrete
Quality Control: Learn More
Amber 590nm LED Indication - Discrete 1.9V 2-SMD, Z-Bend
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 17 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Z-Bend |
| Color | Amber |
| Size / Dimension | 1.99mm L x 2.21mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 500mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.9V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 15° |
| Height (Max) | 2.92mm |
| Wavelength - Peak | 592nm |
| Wavelength - Dominant | 590nm |
| Supplier Device Package | - |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 1.78mm Dia |
