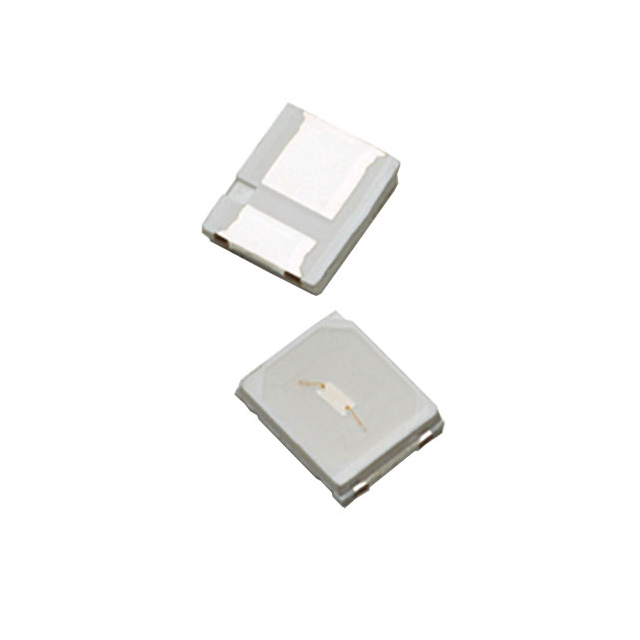

ASMW-LR00-ASU0E
LED RED 2835 SMDManufacturer: Broadcom Limited
Categories: LED Indication - Discrete
Quality Control: Learn More
Broadcom Limited ASMW-LR00-ASU0E is a red 623nm LED designed for discrete indication applications. This 2835 (3528 metric) surface mount component features a standard configuration with a 120° viewing angle. It is supplied on a Tape & Reel (TR) package, facilitating high-volume automated assembly. The LED operates with a test current of 150mA and has dimensions of 2.80mm L x 3.40mm W, with a maximum height of 0.90mm. This component is commonly utilized in automotive, industrial, and consumer electronics for status indication and signaling.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 1411 (3528 Metric) |
| Color | Red |
| Size / Dimension | 2.80mm L x 3.40mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | - |
| Configuration | Standard |
| Lens Color | - |
| Current - Test | 150mA |
| Viewing Angle | 120° |
| Height (Max) | 0.90mm |
| Wavelength - Peak | 633nm |
| Wavelength - Dominant | 623nm |
| Supplier Device Package | 2835 |
| Lens Transparency | - |
