ASMT-YTC2-0AA02
LED RGB CLEAR 6PLCC SMDManufacturer: Broadcom Limited
Categories: LED Indication - Discrete
Quality Control: Learn More

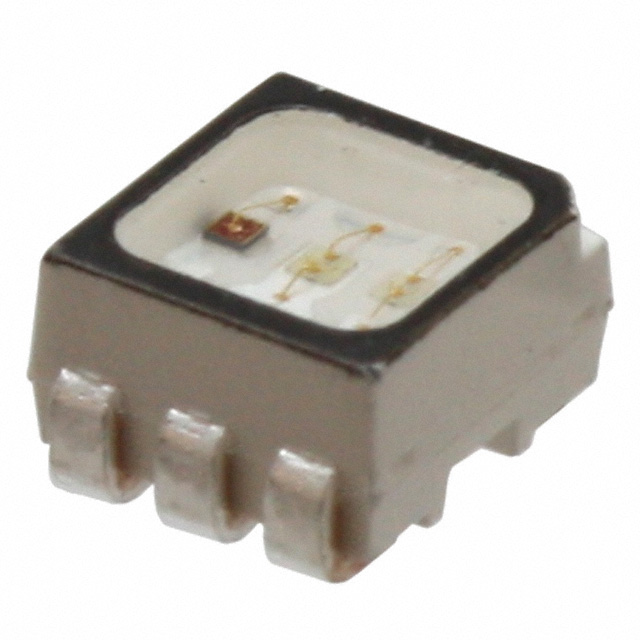

Broadcom Limited ASMT-YTC2-0AA02 is a surface-mount RGB LED with independent emitters. This 6-PLCC component features a clear, colorless lens with a flat top, measuring 3.00mm L x 2.80mm W x 1.80mm H. The dominant wavelengths are 622nm (Red), 530nm (Green), and 470nm (Blue), with peak wavelengths at 629nm, 521nm, and 464nm respectively. At a test current of 20mA, typical forward voltages are 2.1V for Red, and 3.2V for Green and Blue. Luminous intensity ratings are 450mcd (Red), 560mcd (Green), and 180mcd (Blue). The viewing angle is 120°. This component is supplied in tape and reel packaging and is utilized in various indication applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-SMD, J-Lead |
| Color | Red, Green, Blue (RGB) |
| Size / Dimension | 3.00mm L x 2.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 450mcd Red, 560mcd Green, 180mcd Blue |
| Configuration | Independent |
| Voltage - Forward (Vf) (Typ) | 2.1V Red, 3.2V Green, 3.2V Blue |
| Lens Color | Colorless |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | 120° |
| Height (Max) | 1.80mm |
| Wavelength - Peak | 629nm Red, 521nm Green, 464nm Blue |
| Wavelength - Dominant | 622nm Red, 530nm Green, 470nm Blue |
| Supplier Device Package | 6-PLCC |
| Lens Transparency | Clear |
| Lens Style | Square with Flat Top |
| Lens Size | 2.30mm |
