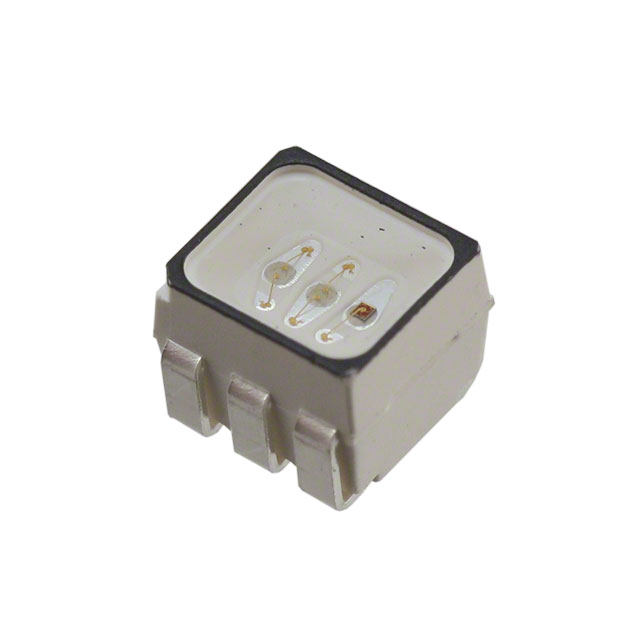

ASMT-YTB0-0AA02
LED RGB CLEAR 6PLCC SMDManufacturer: Broadcom Limited
Categories: LED Indication - Discrete
Quality Control: Learn More
Broadcom Limited ASMT-YTB0-0AA02 is a 6-PLCC surface-mount RGB LED with independent color control. This discrete LED indication component features dominant wavelengths of 621nm (Red), 528nm (Green), and 470nm (Blue), with peak wavelengths at 629nm, 521nm, and 465nm respectively. At a 20mA test current, it provides luminous intensity ratings of 648mcd (Red), 1243mcd (Green), and 238mcd (Blue). The forward voltage requirements are 2.1V for Red, and 3.2V for both Green and Blue. The component has a 6-SMD, J-Lead package with a colorless, clear lens measuring 3.40mm x 3.90mm, and a viewing angle of 115°. Its dimensions are 4.40mm L x 4.00mm W with a maximum height of 3.70mm. This component is suitable for applications in automotive lighting, general indication, and visual displays. It is supplied on tape and reel.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-SMD, J-Lead |
| Color | Red, Green, Blue (RGB) |
| Size / Dimension | 4.40mm L x 4.00mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 648mcd Red, 1243mcd Green, 238mcd Blue |
| Configuration | Independent |
| Voltage - Forward (Vf) (Typ) | 2.1V Red, 3.2V Green, 3.2V Blue |
| Lens Color | Colorless |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | 115° |
| Height (Max) | 3.70mm |
| Wavelength - Peak | 629nm Red, 521nm Green, 465nm Blue |
| Wavelength - Dominant | 621nm Red, 528nm Green, 470nm Blue |
| Supplier Device Package | 6-PLCC |
| Lens Transparency | Clear |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 3.40mm x 3.90mm |
