ASMT-TWBM-NT902
LED WHT/COOL DIFF 2MINIPLCC SMDManufacturer: Broadcom Limited
Categories: LED Indication - Discrete
Quality Control: Learn More

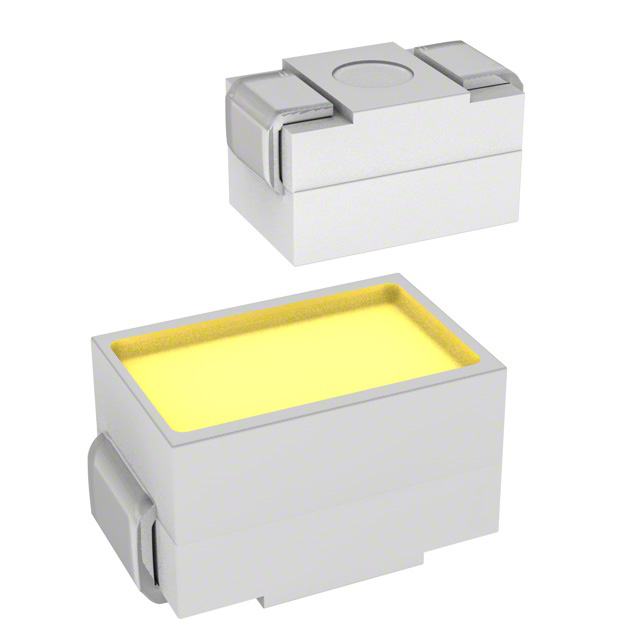

Broadcom Limited ASMT-TWBM-NT902 is a white, cool diffused LED designed for surface mount applications. This discrete indicator component utilizes a 2-Mini PLCC package, measuring 2.00mm in length and 1.40mm in width, with a maximum height of 1.50mm. It features a standard configuration with a diffused, yellow lens of 1.50mm x 1.00mm, presenting a flat-top rectangular style. The LED operates with a typical forward voltage of 3.2V at a test current of 20mA, offering a wide 120° viewing angle. This component is commonly found in automotive, industrial, and consumer electronics applications requiring reliable visual feedback. It is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-Mini PLCC |
| Color | White, Cool |
| Size / Dimension | 2.00mm L x 1.40mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | - |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.2V |
| Lens Color | Yellow |
| Current - Test | 20mA |
| Viewing Angle | 120° |
| Height (Max) | 1.50mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | - |
| Supplier Device Package | 2-MiniPLCC |
| Lens Transparency | Diffused |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.50mm x 1.00mm |
