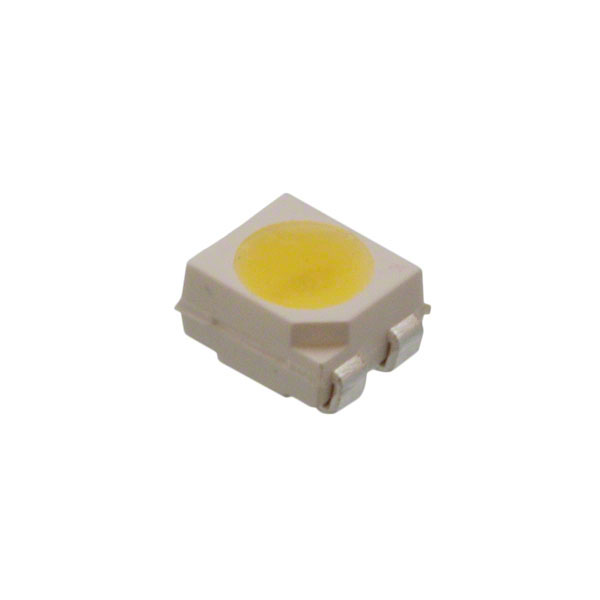

ASMT-SWBM-NU803
LED WHITE DIFFUSED 4PLCC SMDManufacturer: Broadcom Limited
Categories: LED Indication - Discrete
Quality Control: Learn More
Broadcom Limited ASMT-SWBM-NU803 is a white diffused LED housed in a 4-PLCC surface-mount package. This discrete indicator LED operates with a typical forward voltage of 3.2V and a test current of 30mA, achieving a luminous intensity of 1100mcd. The LED features a diffused lens with a 120° viewing angle, providing widespread illumination. Its dimensions are 3.20mm in length by 2.80mm in width, with a maximum height of 2.10mm. This component is commonly utilized in various industrial applications, including general indication, automotive lighting, and consumer electronics where reliable visual feedback is required. The ASMT-SWBM-NU803 is supplied on tape and reel for automated assembly processes.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-PLCC |
| Color | White |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 1100mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.2V |
| Lens Color | Yellow |
| Current - Test | 30mA |
| Viewing Angle | 120° |
| Height (Max) | 2.10mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | - |
| Supplier Device Package | 4-PLCC |
| Lens Transparency | Diffused |
| Lens Style | Round with Flat Top |
| Lens Size | 2.20mm Dia |
