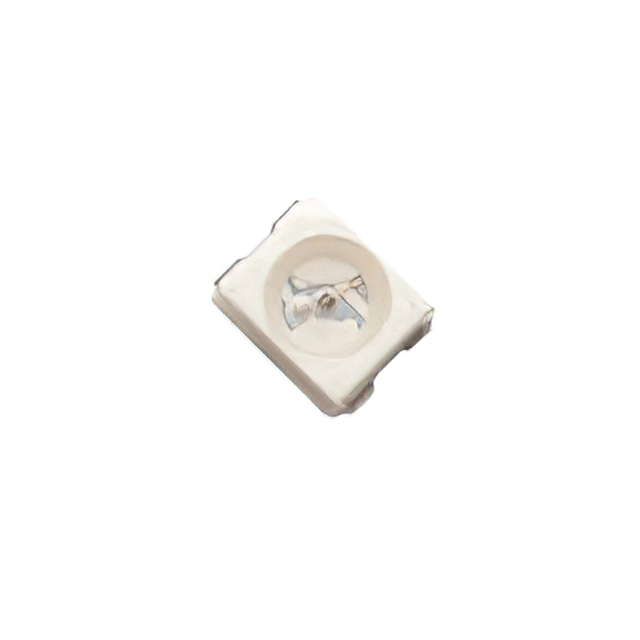

ASMT-SRB4-PW505
LED RED CLEAR 4PLCC SMDManufacturer: Broadcom Limited
Categories: LED Indication - Discrete
Quality Control: Learn More
Broadcom Limited ASMT-SRB4-PW505 is a red, clear 624nm LED designed for surface mount applications. This component is housed in a 4-PLCC package, measuring 3.20mm L x 2.80mm W with a maximum height of 2.10mm. It features a colorless lens with a round, flat-top style and a viewing angle of 120°. The LED exhibits a typical forward voltage of 2.2V and a peak wavelength of 631nm. With a millicandela rating of 2338mcd at a test current of 50mA, it is suitable for various indication applications across industries such as automotive and industrial automation. The ASMT-SRB4-PW505 is supplied on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-PLCC |
| Color | Red |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 2338mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Lens Color | Colorless |
| Current - Test | 50mA |
| Viewing Angle | 120° |
| Height (Max) | 2.10mm |
| Wavelength - Peak | 631nm |
| Wavelength - Dominant | 624nm |
| Supplier Device Package | 4-PLCC |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | 2.20mm Dia |
