ASMT-QTC0-0AA02
LED RGB CLEAR 4PLCC SMDManufacturer: Broadcom Limited
Categories: LED Indication - Discrete
Quality Control: Learn More

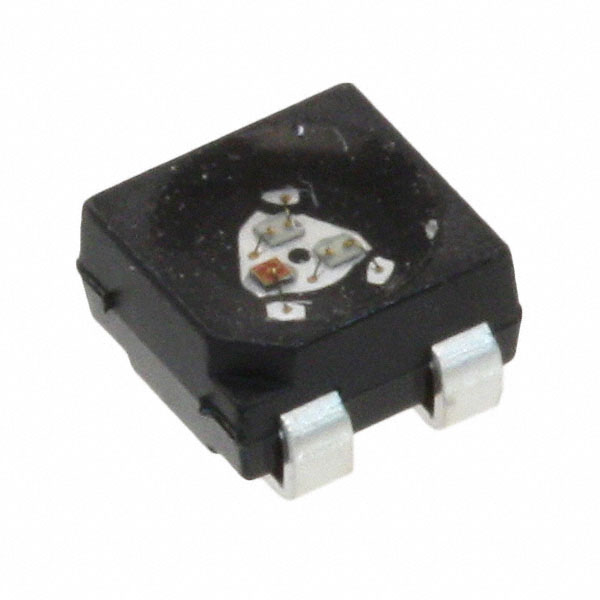

Broadcom Limited ASMT-QTC0-0AA02 is a surface-mount RGB LED in a 4-PLCC package, designed for discrete indication applications. This component features individual emitter wavelengths of 621nm (Red), 528nm (Green), and 470nm (Blue), with corresponding peak wavelengths at 629nm, 521nm, and 465nm. The forward voltage (typ.) for each color is 2.1V (Red), 3.2V (Green), and 3.2V (Blue) at a test current of 20mA. The clear, colorless lens, measuring 2.90mm in diameter, provides a 115° viewing angle. Millicandela ratings are 315mcd (Red), 470mcd (Green), and 140mcd (Blue). The LED is configured as a common anode and is supplied on tape and reel. Its dimensions are 3.40mm L x 3.20mm W with a maximum height of 2.20mm. This component is suitable for use in automotive, industrial, and general lighting applications.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, J-Lead |
| Color | Red, Green, Blue (RGB) |
| Size / Dimension | 3.40mm L x 3.20mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 315mcd Red, 470mcd Green, 140mcd Blue |
| Configuration | Common Anode |
| Voltage - Forward (Vf) (Typ) | 2.1V Red, 3.2V Green, 3.2V Blue |
| Lens Color | Colorless |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | 115° |
| Height (Max) | 2.20mm |
| Wavelength - Peak | 629nm Red, 521nm Green, 465nm Blue |
| Wavelength - Dominant | 621nm Red, 528nm Green, 470nm Blue |
| Supplier Device Package | 4-PLCC |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | 2.90mm Dia |
