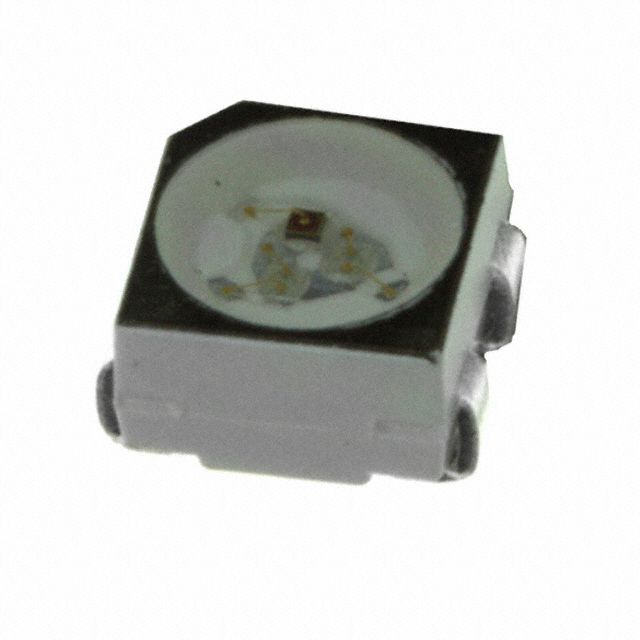

ASMT-QTB0-0AA02
LED RGB CLEAR 4PLCC SMDManufacturer: Broadcom Limited
Categories: LED Indication - Discrete
Quality Control: Learn More
Broadcom Limited ASMT-QTB0-0AA02 is a 4-PLCC surface mount RGB LED designed for indication applications. This component features individual Red (621nm dominant, 629nm peak), Green (528nm dominant, 521nm peak), and Blue (470nm dominant, 465nm peak) emitters with a common anode configuration. Forward voltage characteristics are 2.1V for Red and 3.2V for Green and Blue, with a test current of 20mA across all colors. Luminous intensity ratings are 620mcd Red, 1200mcd Green, and 280mcd Blue. The LED has a clear, round lens with a flat top and a viewing angle of 120°. Dimensions are 3.40mm L x 3.20mm W with a maximum height of 2.20mm. This device is supplied in a Tape & Reel (TR) package and is utilized in automotive, industrial, and consumer electronics sectors.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, J-Lead |
| Color | Red, Green, Blue (RGB) |
| Size / Dimension | 3.40mm L x 3.20mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 620mcd Red, 1200mcd Green, 280mcd Blue |
| Configuration | Common Anode |
| Voltage - Forward (Vf) (Typ) | 2.1V Red, 3.2V Green, 3.2V Blue |
| Lens Color | Colorless |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | 120° |
| Height (Max) | 2.20mm |
| Wavelength - Peak | 629nm Red, 521nm Green, 465nm Blue |
| Wavelength - Dominant | 621nm Red, 528nm Green, 470nm Blue |
| Supplier Device Package | 4-PLCC |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | 2.90mm Dia |
