ASMT-FG10-NFJ00
LED GREEN CLEAR SMDManufacturer: Broadcom Limited
Categories: LED Indication - Discrete
Quality Control: Learn More

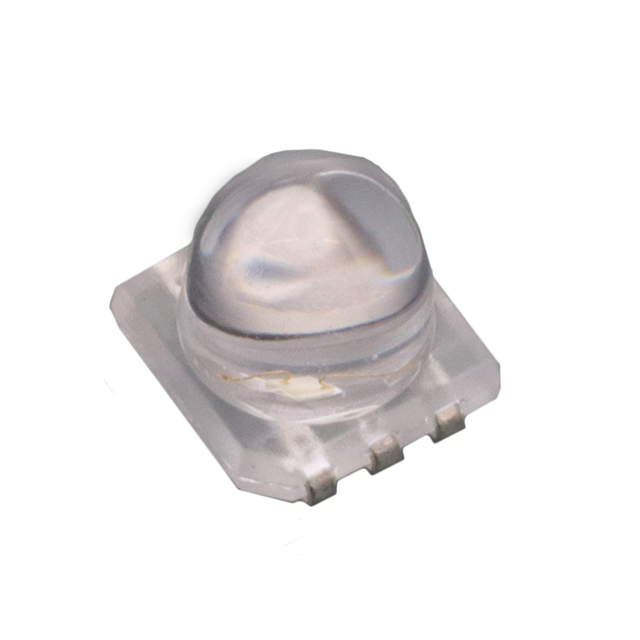

Broadcom Limited ASMT-FG10-NFJ00 is a high-intensity green LED designed for discrete indication applications. This surface-mount component features a clear, domed lens with a 4.32mm diameter, providing a 11° viewing angle. Fabricated with a 530nm dominant wavelength (525nm peak), it achieves a typical forward voltage of 3.3V and a test current of 20mA, delivering 57000mcd luminous intensity. The 6-SMD, J-Lead package, measuring 4.80mm x 4.80mm with a maximum height of 5.43mm, is supplied on tape and reel. This component is commonly utilized in industrial automation, medical equipment, and consumer electronics for visual status feedback.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-SMD, J-Lead |
| Color | Green |
| Size / Dimension | 4.80mm L x 4.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 57000mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.3V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 11° |
| Height (Max) | 5.43mm |
| Wavelength - Peak | 525nm |
| Wavelength - Dominant | 530nm |
| Supplier Device Package | SMD |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 4.32mm Dia |
