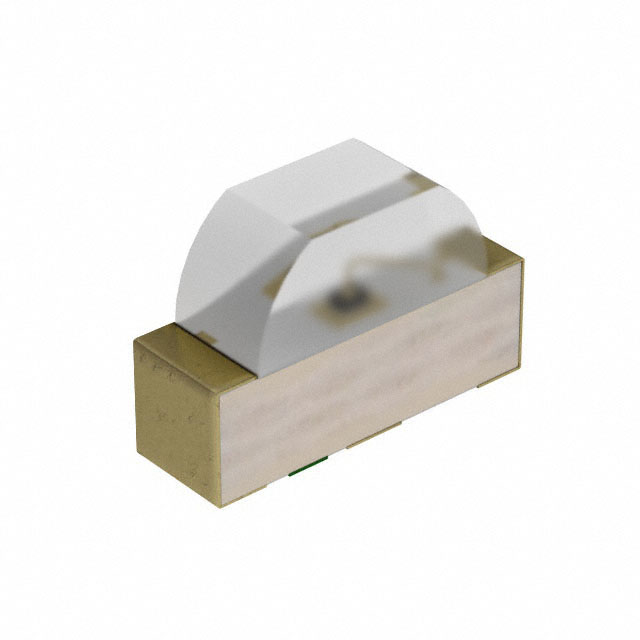

ASMT-CW00
LED WHITE CLEAR 0603 SMD R/AManufacturer: Broadcom Limited
Categories: LED Indication - Discrete
Quality Control: Learn More
White LED Indication - Discrete 2.85V 2-SMD, No Lead
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 17 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, No Lead |
| Color | White |
| Size / Dimension | 1.60mm L x 1.00mm W |
| Mounting Type | Surface Mount, Right Angle |
| Millicandela Rating | 35mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.85V |
| Lens Color | Colorless |
| Current - Test | 5mA |
| Viewing Angle | 150° |
| Height (Max) | 0.45mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | - |
| Supplier Device Package | 0603 |
| Lens Transparency | Clear |
| Lens Style | Rectangle with Domed Top |
| Lens Size | 1.20mm x 0.50mm |
