ASMC-PRB9-TV005
LED RED CLEAR 4PLCC SMDManufacturer: Broadcom Limited
Categories: LED Indication - Discrete
Quality Control: Learn More
Broadcom Limited Envisium™ ASMC-PRB9-TV005 is a red, clear lens, surface mount LED designed for discrete indication applications. This 4-PLCC package component emits light at a dominant wavelength of 630nm with a peak wavelength of 639nm. It operates with a typical forward voltage of 2.8V and a test current of 50mA, achieving a millicandela rating of 920mcd. The LED features a round lens with a flat top, a diameter of 2.20mm, and a height of 2.10mm. Its 120° viewing angle and compact 3.20mm L x 2.80mm W footprint make it suitable for use in automotive, industrial, and consumer electronics. Supplied in tape and reel packaging.
Additional Information
Series: Envisium™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-PLCC |
| Color | Red |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 920mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.8V |
| Lens Color | Colorless |
| Current - Test | 50mA |
| Viewing Angle | 120° |
| Height (Max) | 2.10mm |
| Wavelength - Peak | 639nm |
| Wavelength - Dominant | 630nm |
| Supplier Device Package | 4-PLCC |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | 2.20mm Dia |
Request a Quote
Clients Also Buy

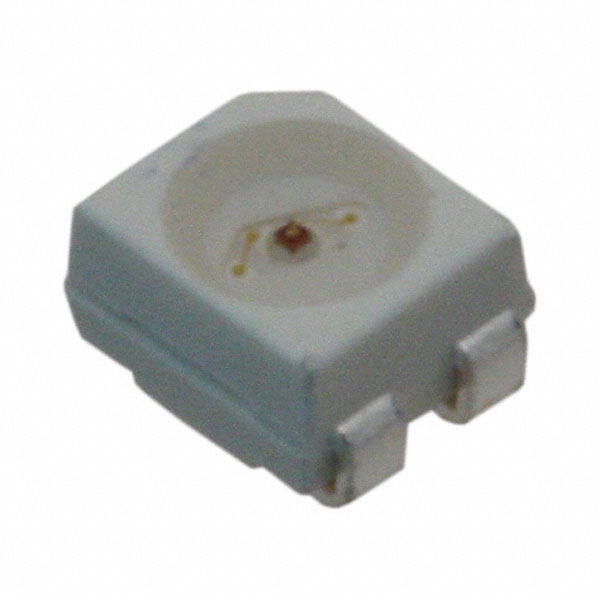

ASMC-PAB9-TV005
LED AMBER CLEAR 4PLCC SMD

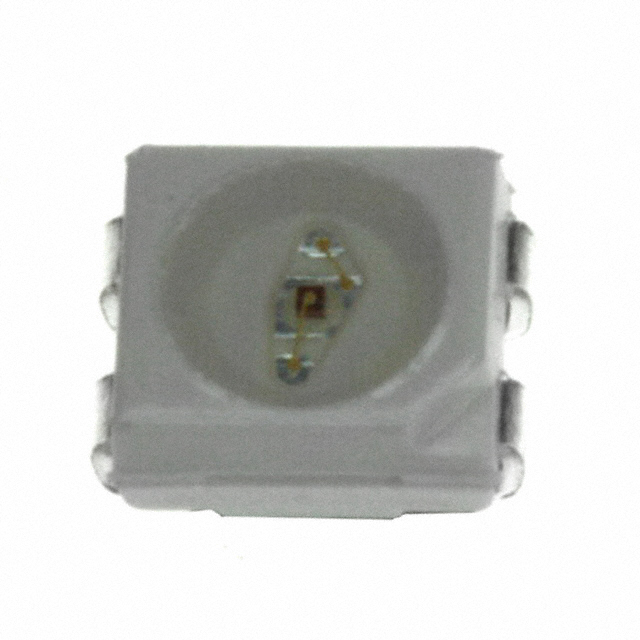

ASMC-PHB9-TW005
