ASMB-TTB0-0A3A2

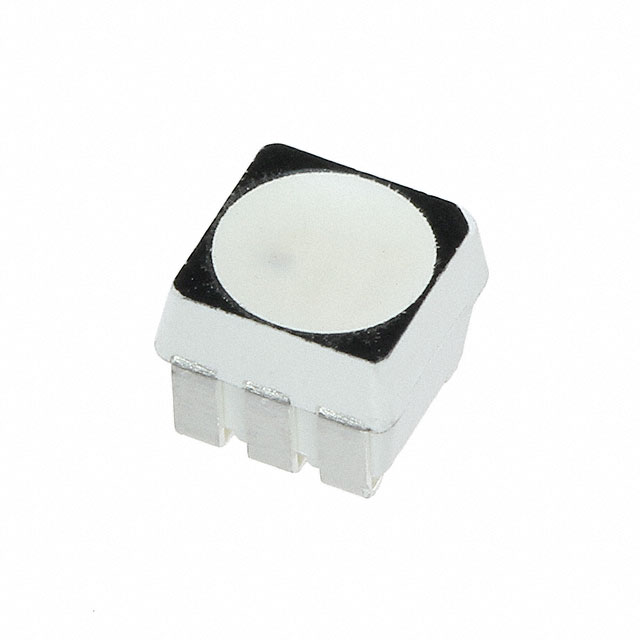

LED RGB DIFFUSED 6PLCC SMDManufacturer: Broadcom Limited
Categories: LED Indication - Discrete
Quality Control: Learn More
Broadcom Limited ASMB-TTB0-0A3A2 is a diffused, RGB (Red, Green, Blue) LED indication component. This 6-PLCC surface mount device features independent control of its Red, Green, and Blue emitters, with dominant wavelengths of 621nm (Red), 530nm (Green), and 470nm (Blue). At a test current of 20mA, it provides luminous intensity ratings of 790mcd for Red, 2400mcd for Green, and 500mcd for Blue. Forward voltage characteristics are 2.1V for Red and 2.9V for Green and Blue. The component's dimensions are 3.50mm L x 3.50mm W with a maximum height of 2.80mm. The round with flat top lens style offers a viewing angle of 115°. This component is commonly utilized in automotive lighting, consumer electronics, and general signage applications. It is supplied in a Tape & Reel (TR) package.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-SMD, J-Lead |
| Color | Red, Green, Blue (RGB) |
| Size / Dimension | 3.50mm L x 3.50mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 790mcd Red, 2400mcd Green, 500mcd Blue |
| Configuration | Independent |
| Voltage - Forward (Vf) (Typ) | 2.1V Red, 2.9V Green, 2.9V Blue |
| Lens Color | - |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | 115° |
| Height (Max) | 2.80mm |
| Wavelength - Peak | 635nm Red, 521nm Green, 464nm Blue |
| Wavelength - Dominant | 621nm Red, 530nm Green, 470nm Blue |
| Supplier Device Package | 6-PLCC |
| Lens Transparency | Diffused |
| Lens Style | Round with Flat Top |
| Lens Size | - |
