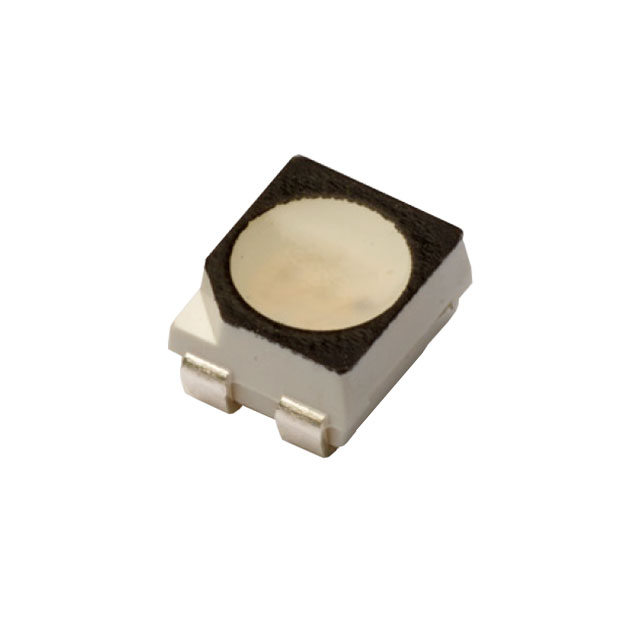

ASMB-MTB1-0A3A2
LED RGB DIFFUSED 4PLCC SMDManufacturer: Broadcom Limited
Categories: LED Indication - Discrete
Quality Control: Learn More
Broadcom Limited ASMB-MTB1-0A3A2 is a diffused, common anode RGB LED housed in a 4-PLCC package for surface mounting. This component delivers distinct red, green, and blue light outputs with peak wavelengths of 634nm, 522nm, and 465nm respectively. Typical forward voltages are 2.1V for red, and 3.1V for both green and blue, with a test current of 20mA for each color. Luminous intensity ratings are 540mcd for red, 1600mcd for green, and 350mcd for blue. The LED features a 115° viewing angle and a diffused lens for broader light dispersion, suitable for various indication applications across consumer electronics and automotive sectors. The ASMB-MTB1-0A3A2 is supplied on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-PLCC |
| Color | Red, Green, Blue (RGB) |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 540mcd Red, 1600mcd Green, 350mcd Blue |
| Configuration | Common Anode |
| Voltage - Forward (Vf) (Typ) | 2.1V Red, 3.1V Green, 3.1V Blue |
| Lens Color | White |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | 115° |
| Height (Max) | 1.90mm |
| Wavelength - Peak | 634nm Red, 522nm Green, 465nm Blue |
| Wavelength - Dominant | 625nm Red, 530nm Green, 470nm Blue |
| Supplier Device Package | 4-PLCC |
| Lens Transparency | Diffused |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
