ASMB-BTE1-0B332
LED RGB DIFFUSED 4PLCC SMDManufacturer: Broadcom Limited
Categories: LED Indication - Discrete
Quality Control: Learn More

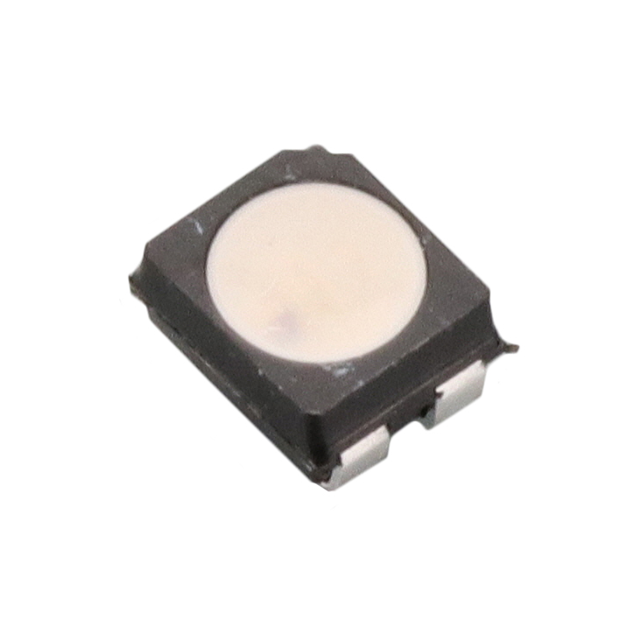

Broadcom Limited ASMB-BTE1-0B332 is a surface-mount RGB LED housed in a 4-PLCC package. This diffused LED offers independent control of Red (622nm dominant, 629nm peak), Green (529nm dominant, 521nm peak), and Blue (469nm dominant, 464nm peak) emitters. Forward voltage characteristics are typified at 2.1V for Red and 3.1V for Green and Blue, with a standard test current of 20mA for each color. The component provides luminous intensity ratings of 630mcd (Red), 1500mcd (Green), and 350mcd (Blue) at 20mA. With a 110° viewing angle and a 3.20mm L x 2.80mm W footprint, this component is suitable for various indication applications across industrial, automotive, and consumer electronics sectors. The device is supplied on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-PLCC |
| Color | Red, Green, Blue (RGB) |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 630mcd Red, 1500mcd Green, 350mcd Blue |
| Configuration | Common Anode |
| Voltage - Forward (Vf) (Typ) | 2.1V Red, 3.1V Green, 3.1V Blue |
| Lens Color | White |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | 110° |
| Height (Max) | 1.90mm |
| Wavelength - Peak | 629nm Red, 521nm Green, 464nm Blue |
| Wavelength - Dominant | 622nm Red, 529nm Green, 469nm Blue |
| Supplier Device Package | 4-PLCC |
| Lens Transparency | Diffused |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
